Fast Single-Push Cleaning
A user-friendly push action supports quick connector maintenance in data centers, telecom rooms and field environments.

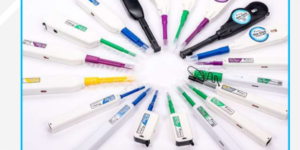

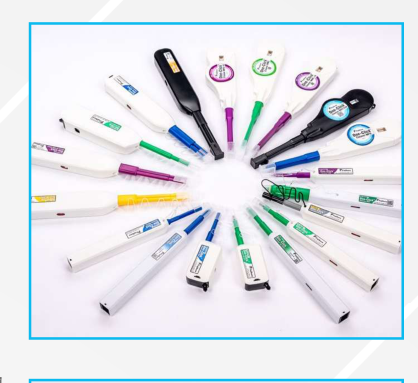

STAR400 One-click Cleaners
Dry optical connector cleaning tools for removing dust, grease and other contaminants from fiber connector end faces across LC, SC, ST, FC, MPO/MTP®, SN®, CS™, MDC, MMC and other connector formats.
Fiber connector contamination can interfere with connection quality and field reliability. The One-Click™ cleaner family is designed to clean optical connector ferrule end faces using a dry, single-push action that removes common contaminants without liquid cleaning steps.
The lineup covers a broad range of single-fiber, duplex and multi-fiber connector formats, allowing technicians to select a cleaner that matches the connector geometry and access method.
Choose Configuration
One-Click Cleaning Pen for Simplex LC
One-Click Cleaning Pen for simplex LC connectors with 1.25 mm ferrule.
- Ferrule
- 1.25mm
- Minimum Cleaning Cycles
- 750cycles
One-Click Cleaning Pen for MPO/MTP
One-Click Cleaning Pen for MPO/MTP connectors.
- Minimum Cleaning Cycles
- 600cycles
Broad Connector Coverage
Dedicated models support LC, SC, ST, FC, MPO/MTP®, MT-RJ, ODC, SN®, CS™, MDC, MMC and other optical interfaces.
High Cleaning Capacity
Most listed variants provide 500+ cleaning cycles, while SC PRO and LC PRO provide 775+ cleanings.
PC & APC Support
The product-family features state support for both PC and APC connector end-face cleaning.
Select the cleaner according to connector type, ferrule geometry, access method and any ESD requirement.
| Cleaner | Part Number | Application | Cleaning Cycles | Compliance |
|---|---|---|---|---|
| One-Click™ Cleaner CS/MDC Duplex | CS/MDC-CLK-A | CS™ / MDC | 500+ | RoHS2 |
| One-Click™ Cleaner D-LC | DLC-CLK-A | Duplex LC | 500+ | RoHS2 |
| One-Click™ Cleaner HOC | HOC-CLK-A | TITAN / TRIDENT™ / SC | 500+ | RoHS2 |
| One-Click™ Cleaner MMC-16 | MMC16-CLK-A | 16f/32f MMC | 500+ | RoHS2 |
| One-Click™ Cleaner M20 | M20-CLK-A | SMPTE 304M compliant connectors | 500+ | RoHS2 |
| One-Click™ Cleaner M250 | M250-E-CLK-A | SC | 500+ | RoHS2 |
| One-Click™ Cleaner MPO-16 | MPO16-CLK-A | 16f/32f MPO | 500+ | RoHS2 |
| One-Click™ Cleaner MPO | MPO-CLK-D | MPO / MTP™ | 500+ | RoHS2 |
| One-Click™ Cleaner MT-RJ | MTRJ-CLK-A | MT-RJ | 500+ | RoHS2 |
| One-Click™ Cleaner MU/LC | MU/LC-CLK-C | MU / LC | 500+ | RoHS2 |
| One-Click™ Cleaner MU/LC Mini | MU/LC-MINI-CLK-A | MU / LC | 500+ | RoHS2 |
| One-Click™ Cleaner ODC | ODC-CLK-A | ODC | 500+ | RoHS2 |
| One-Click™ Cleaner SC | SC-CLK-B | SC / ST / FC | 500+ | RoHS2 |
| One-Click™ Cleaner SC Mini | SC-MINI-CLK-A | SC / ST / FC | 500+ | RoHS2 |
| One-Click™ Cleaner SN® Duplex | SN-CLK-A | SN® | 500+ | RoHS2 |
| One-Click™ Cleaner MPO ESD | MPOESD-CLK-A | 12f/24f MPO / MTP® | 500+ | RoHS2 + IEC 61340-5-1 |
| One-Click™ Cleaner SC PRO | SCPRO-CLK-A | SC | 775+ | RoHS2 |
| One-Click™ Cleaner LC PRO | LCPRO-CLK-A | LC* | 775+ | RoHS2 |
*LC PRO QA: the source’s APPLICATION field says “SC connector,” while the model name and description state LC cleaning. Confirm the intended application entry before publishing the final production table.

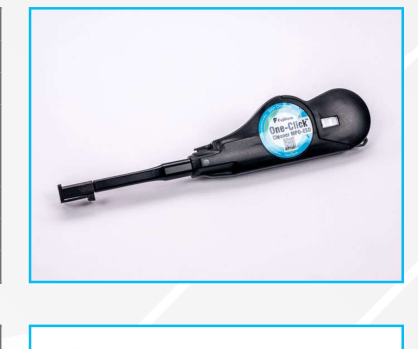

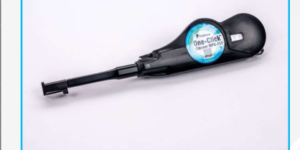

The MPO ESD variant is designed for 12f/24f MPO or MTP® connectors and adds electrostatic discharge suppression for use in electrostatic protected areas (EPAs).
ESD Protection
Designed to suppress electrostatic discharge during cleaning of sensitive multi-fiber optical interfaces.
IEC 61340-5-1
The supplied datasheet lists compliance with IEC 61340-5-1 in addition to RoHS2.
Surface Resistance
Published surface resistance value: 1 × 1012 Ω or less.
Charge Decay
Published charge-decay value: 2 seconds or less.

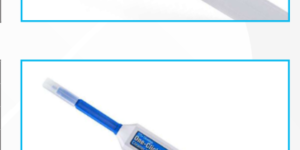

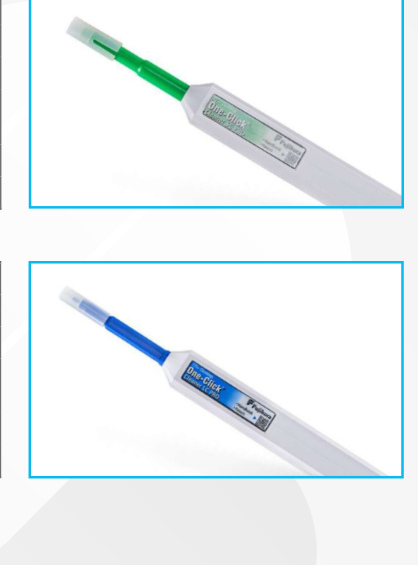

The PRO variants increase cleaning capacity to 775+ cycles, reducing replacement frequency for teams performing repetitive connector maintenance.
| Model | P/N | Application | Cycles |
|---|---|---|---|
| One-Click™ Cleaner SC PRO | SCPRO-CLK-A | SC connector | 775+ |
| One-Click™ Cleaner LC PRO | LCPRO-CLK-A | LC connector* | 775+ |
The current Fibernet product page also presents SMART Cleaners as dry cleaning tools for single-fiber connector maintenance and removal of common contaminants.
A dedicated SMART Cleaner datasheet was not supplied with this page build. Exact model names, supported connectors, dimensions, cleaning-cycle counts and technical performance values should be added only after an approved SMART Cleaner source is provided.
