Increase Fiber Density
The datasheet states that MTP® connectivity offers more than 12 times the density of standard connectors, reducing the space required for multi-fiber connections.
STAR400 MTP Bundles & Fanouts
Pre-terminated single-mode and multimode MTP® bundle and fanout assemblies for high-density fiber distribution, breakout and equipment connectivity across data center and telecommunications environments.

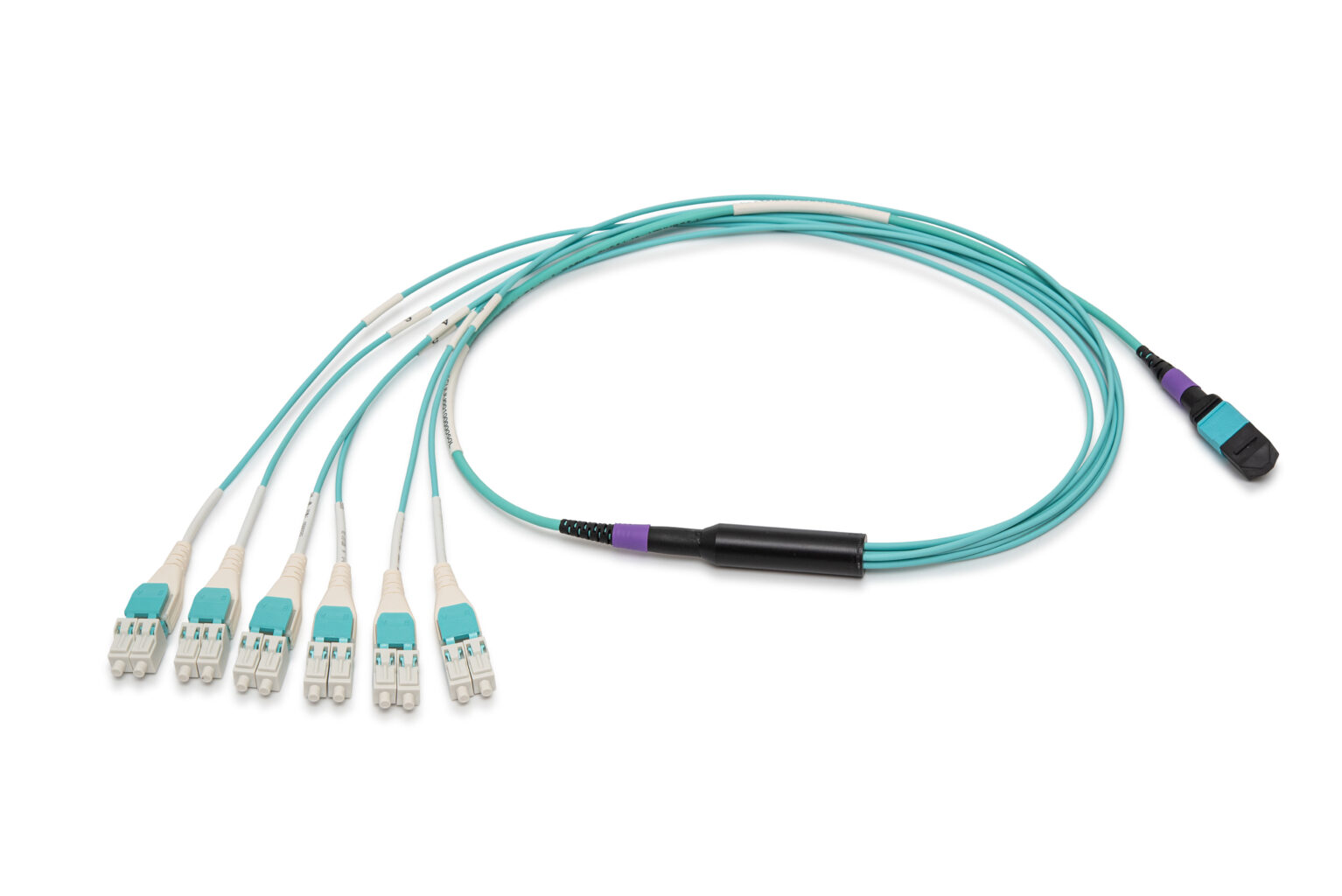

MTP® bundle and fanout assemblies are used where a high-density multi-fiber link needs to transition to individual or duplex equipment connections. The MTP® side concentrates multiple fibers into a compact interface, while the fanout side can be configured with LC, SC, FC, ST, LC Uniboot or another MTP® connection.
The source identifies data centers, high-density environments, storage area networks, communications rooms and data communication networks as target applications.
Choose the Required Breakout Interface
Configure the fanout side for LC, SC, FC, ST, LC Uniboot or MTP® based on the equipment and patching architecture.
Deploy Pre-Terminated Assemblies Faster
MTP® Elite connectors, durable strain relief and optional pull-eye configurations support faster field deployment.
Document Optical Performance
Insertion loss, return loss and ferrule-geometry testing are documented for each fiber.
- 8F
- 12F
- 16F
- 24F
- 48F
- 2×12F
- 3×12F
- 4×12F
- G.657A2 BI
- OM3 BI
- OM4 BI
- MTP® Female
- MTP® Male
- LC Duplex
- LC Simplex
- LC Uniboot
- SC Duplex
- SC Simplex
- FC
- ST
- UPC
- APC
OM5 is listed in the standards section but does not appear in the Build Your Order matrix, so it is not shown as a standard orderable option.

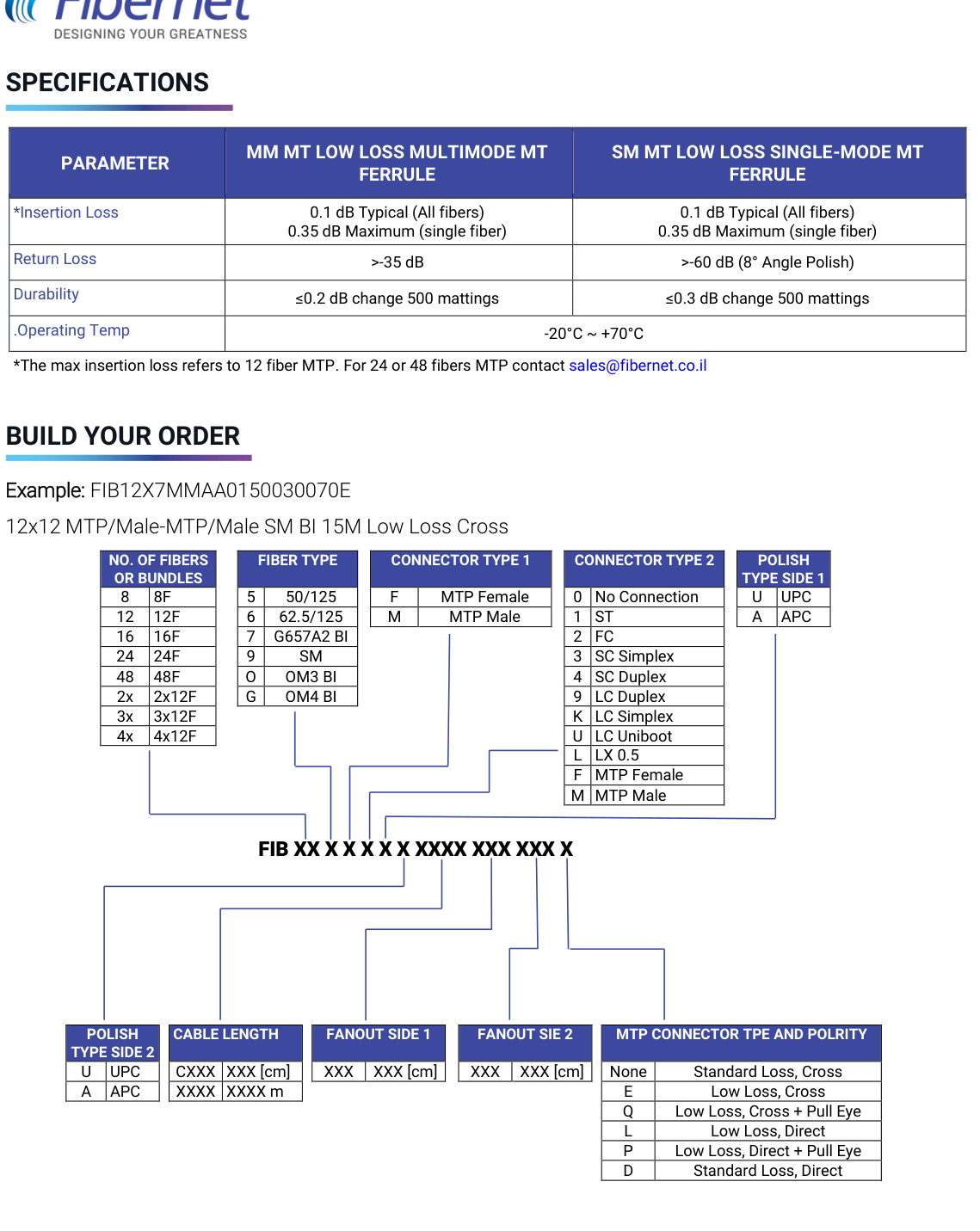

| Parameter | MM MT Low Loss | SM MT Low Loss |
|---|---|---|
| Insertion Loss | 0.1 dB typical (all fibers) / 0.35 dB maximum (single fiber) | 0.1 dB typical (all fibers) / 0.35 dB maximum (single fiber) |
| Return Loss | >35 dB | >60 dB (8° angle polish) |
| Durability | ≤0.2 dB change after 500 matings | ≤0.3 dB change after 500 matings |
| Operating Temperature | -20°C to +70°C | -20°C to +70°C |
The datasheet notes that the stated maximum insertion loss refers to 12-fiber MTP®. For 24- or 48-fiber MTP® products, contact Fibernet for the applicable optical-performance specification.
Data Centers
High-density breakout between MTP® backbone links, panels, modules and active equipment.
High-Density Environments
Consolidate multiple fibers into compact multi-fiber interfaces where rack or pathway space is constrained.
Storage Area Networks (SAN)
Pre-terminated multi-fiber distribution for storage and compute architectures.
Communications Rooms
Flexible MTP®-to-discrete connector breakout inside structured fiber infrastructure.
Data & Telecommunications Systems
The source also positions MTP® products for high-density backplane and PCB applications.
- IEEE 802.3ba · 40/100 Gb/s
- IEEE P802.3bs · 400 Gb/s
- IEC 60793-2-10:2019 · OM3 / OM4 / OM5
- ITU-T G.657A2 · OS2
- GR-1435-CORE
- IEC 61754-7
- IEC 61755-3
- IEC 11801
- IEC 60794-1 / -2
- IEC 60874
- TIA-604-10 · LC FOCIS 10
- TIA/EIA-604-5 · MPO FOCIS
- TIA-568-C.3
- TIA-942-A
- UL94 V-0
- IEC 60332-3C
- IEC 60754-1/2
- IEC 61034
- RoHS
Technical QA hold: the source also lists “IEEE 802.3ab-2010 – ETL lab verified (up to 100G Ethernet)”. This claim is intentionally omitted from visible public compliance content pending Fibernet Engineering validation.
Source pattern: FIB XX X X X X X XXXX XXX XXX X
| Selection | Code | Published Options |
|---|---|---|
| No. of Fibers / Bundles | 8 / 12 / 16 / 24 / 48 / 2x / 3x / 4x | 8F / 12F / 16F / 24F / 48F / 2×12F / 3×12F / 4×12F |
| Fiber Type | 5 / 6 / 7 / 9 / O / G | 50/125 / 62.5/125 / G.657A2 BI / SM / OM3 BI / OM4 BI |
| Connector Type 1 | F / M | MTP® Female / MTP® Male |
| Connector Type 2 | 0 / 1 / 2 / 3 / 4 / 9 / K / U / L / F / M | No Connection / ST / FC / SC Simplex / SC Duplex / LC Duplex / LC Simplex / LC Uniboot / LX 0.5 / MTP® Female / MTP® Male |
| Polish Side 1 | U / A | UPC / APC |
| Polish Side 2 | U / A | UPC / APC |
| Cable Length | CXXX / XXXX | XXX cm / XXXX m |
| Fanout Side 1 | XXX | XXX cm |
| Fanout Side 2 | XXX | XXX cm |
| MTP® Type / Polarity | blank / E / Q / L / P / D | Standard Loss Cross / Low Loss Cross / Low Loss Cross + Pull Eye / Low Loss Direct / Low Loss Direct + Pull Eye / Standard Loss Direct |
Published example: FIB12X7MMAA0150030070E — described by the source as “12×12 MTP/Male-MTP/Male SM BI 15M Low Loss Cross.”
SKU QA: the example description references a 12×12 configuration, while the visible matrix only lists bundle codes through 4×12F. Confirm the commercial code and bundle-count range before connecting this page to Shopify, ERP or an automated configurator.
