Scale Density in a 4U Footprint
The detailed specification table publishes 576 fibers with LC-MTP® and 2,304 fibers with the MTP®-MTP® architecture.

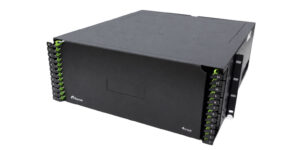

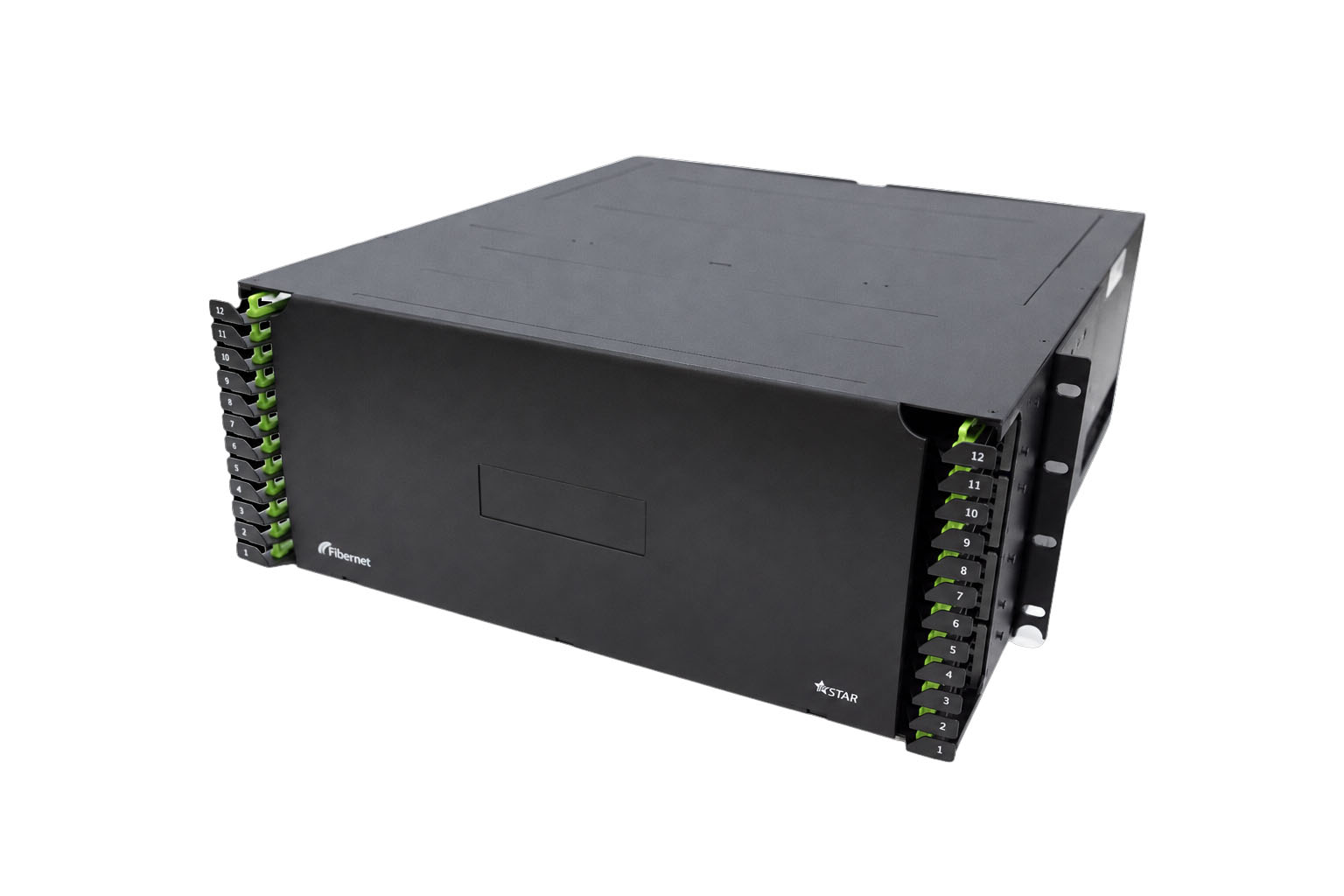

STAR400 4U
A modular 4U optical distribution frame with 12 pull-out trays, multi-side service access and high-density LC/MTP® or MTP®-MTP® architectures for scalable data center fiber infrastructure.
Large data center fiber environments need more than raw port density. When hundreds or thousands of fibers are concentrated into a rack, technicians need predictable access to trays, trunks, patch cords and labels without disrupting adjacent connections.
STAR400 4U combines 12 pull-out trays with front, rear and side service access, modular STAR400 connectivity and integrated cable management to support dense installations while keeping future moves, adds and changes manageable.
Access Connections from Multiple Sides

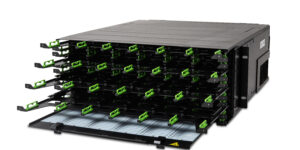

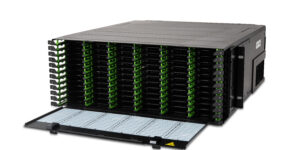

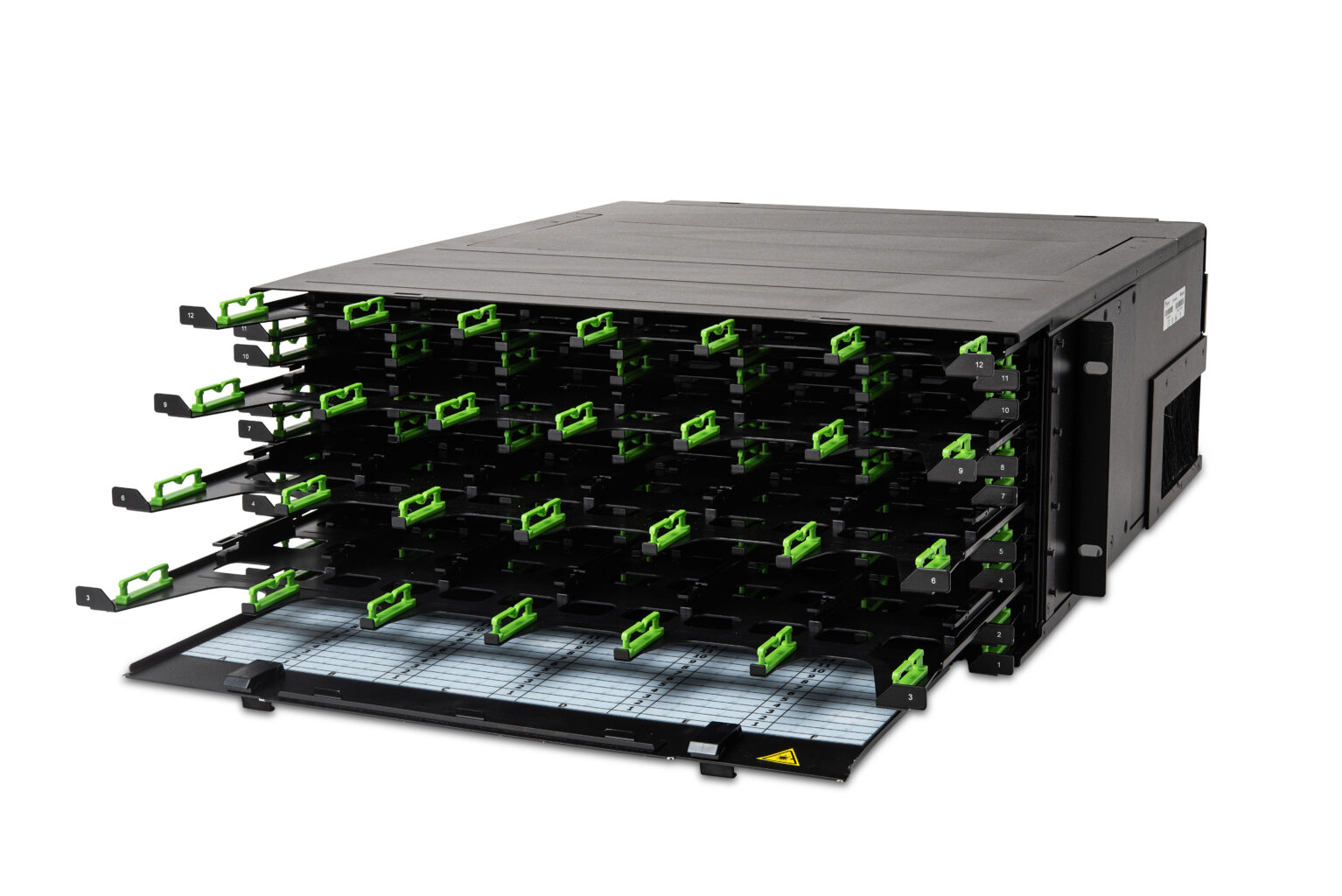

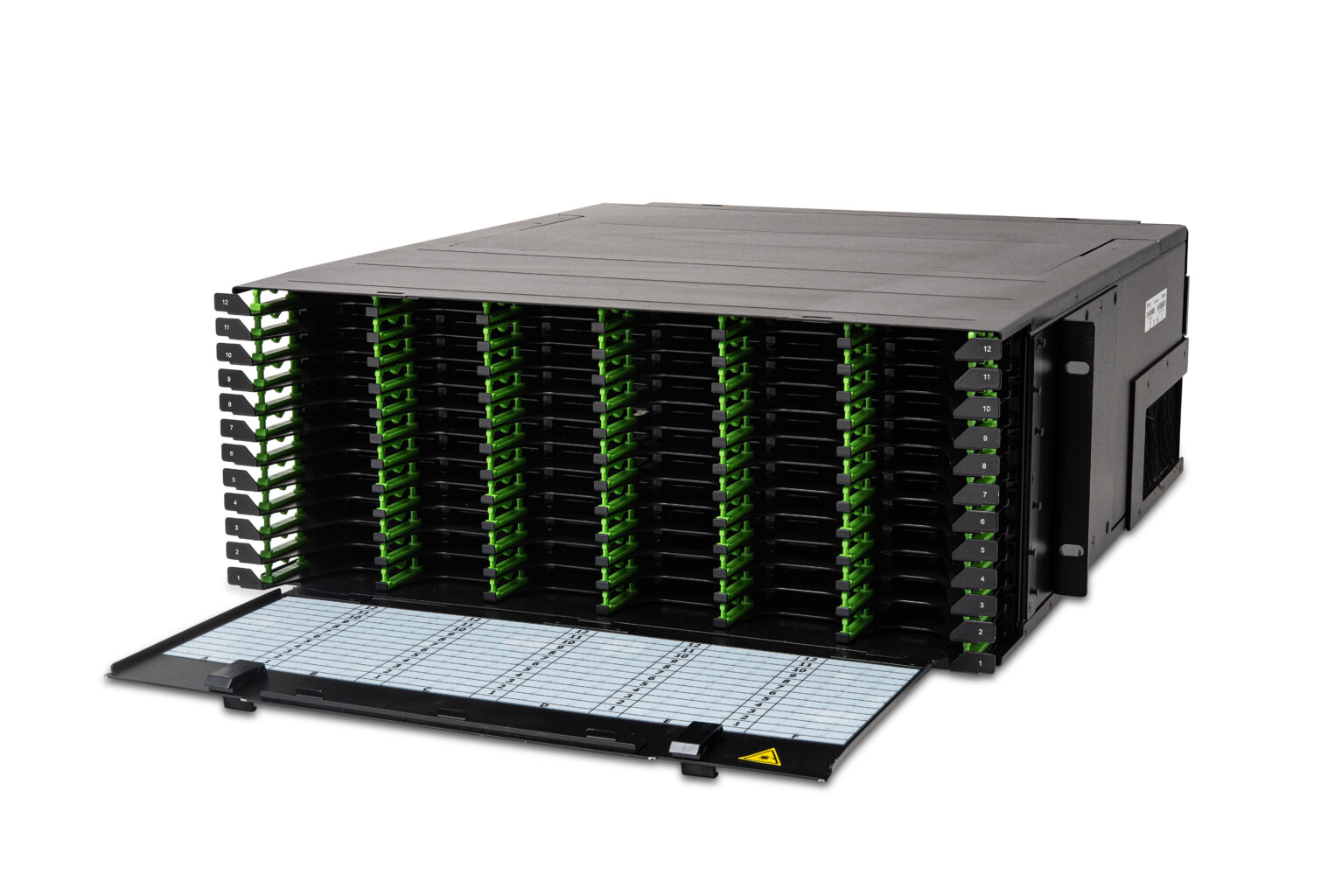

Front, rear and side access plus pull-out trays simplify service work on cables, ports and patch cords.
Reduce Cable Congestion
Uni-Boot patch cords can reduce cable volume by 50% compared with duplex patch cords, helping preserve pathway space.
Keep Trunks and Patching Organized
Colored routing guides, integrated labeling, strain relief and 24 trunk mounting positions support structured cable management.
| Configuration | Published Capacity |
|---|---|
| LC-MTP® | 288 Duplex / 576 fibers |
| 4 × MTP®-MTP® | 192 MTP® ports / 2,304 fibers |

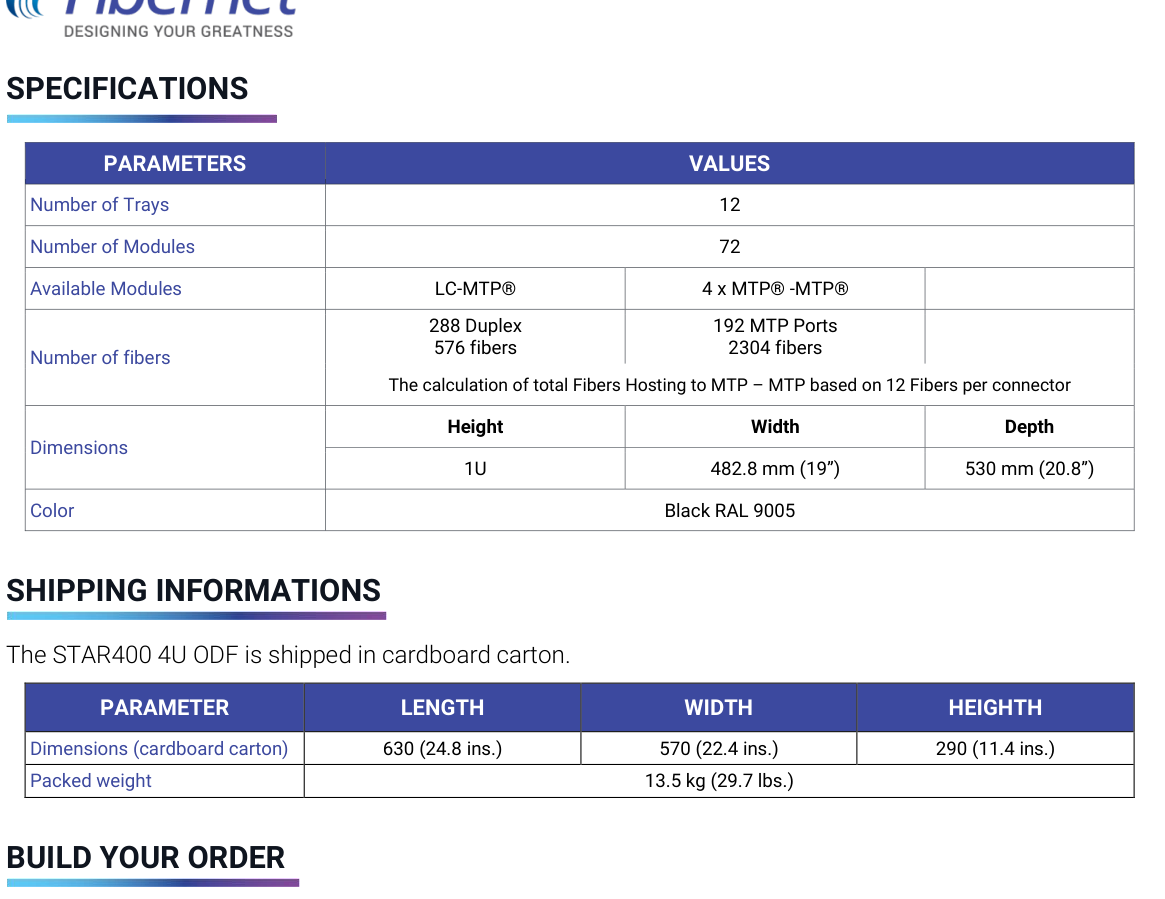

| Parameter | Published / Controlled Value |
|---|---|
| Rack Height | 4U per mechanical drawing: 178.0 mm. Datasheet table prints 1U – QA required. |
| Number of Trays | 12 |
| Maximum Module Count | 72 |
| Width | 482.8 mm datasheet / 482.6 mm drawing (19-inch rack format) |
| Depth | 530 mm datasheet nominal / 518.3 mm drawing chassis dimension |
| Color | Black, RAL 9005 |
| Trunk Cable Positions | 24 |
| Access | Front, rear and side |
| Installation | Tool-free STAR400 module installation |
| Rack Options | 19-inch standard; optional 21-inch and 23-inch brackets |
| Packed Carton | 630 × 570 × 290 mm |
| Packed Weight | 13.5 kg |

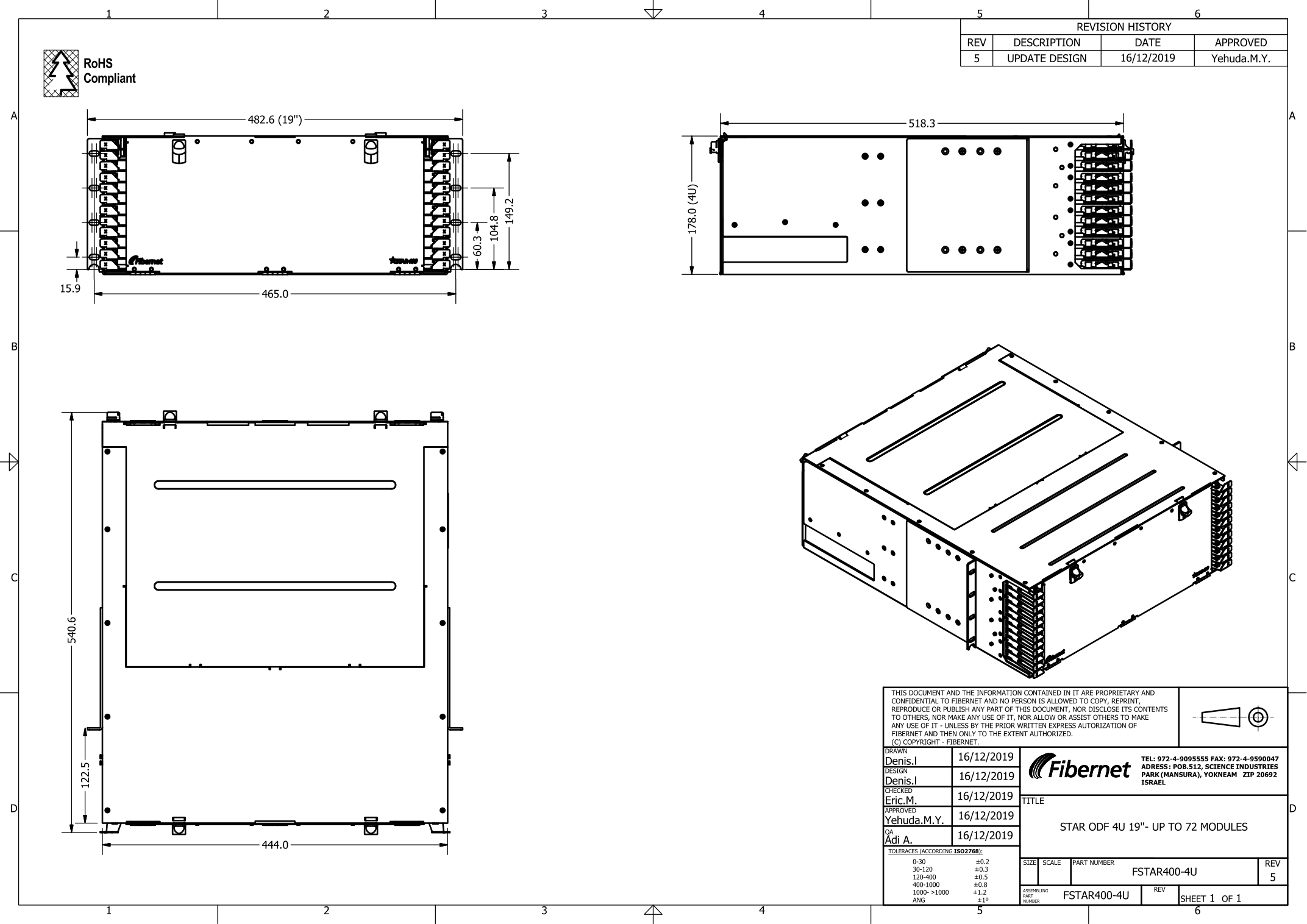

The mechanical drawing identifies the product as STAR ODF 4U 19″ – UP TO 72 MODULES, P/N FSTAR400-4U, and shows a 178.0 mm 4U height, 482.6 mm 19-inch mounting width and 518.3 mm chassis depth.
Download Mechanical Drawing PDF
Data Centers
High-density rack-level optical distribution between backbone trunks, STAR400 modules and equipment patching.
High-Density Environments
Large fiber-count deployments where density and service access must be balanced.
Storage Area Networks (SAN)
Structured modular fiber distribution for storage and compute interconnects.
Communications Rooms
Rack-based fiber infrastructure with organized patching and multi-side service access.
Data Communication Networks
Scalable optical distribution using pre-terminated STAR400 module architectures.
- IEEE 802.3ae · 10 Gb/s
- IEEE 802.3ba · 40/100 Gb/s
- IEEE P802.3bs · 400 Gb/s
- GR-449-CORE
- TIA-942
- IEC 60793-2-10:2019 · OM3 / OM4
- ITU-T G.657.A2
- UL94 V-0
- EIA-310
- RoHS
Datasheet base code: FSTAR-4U ODF with 12 trays.
| Included / Optional | Published Information |
|---|---|
| Installation Kit | 2 cable-management brackets, 1 spiral tube, 4 screws, 4 washers and installation manual |
| STAR400 Modules | Order separately as required |
| Cables & Patch Cords | Order separately as required |
| Optional Rack Brackets | 21-inch and 23-inch rack brackets |
