Change Field Polarity
Reconfigure polarity on MTP® PRO connectors using the dedicated field tool.

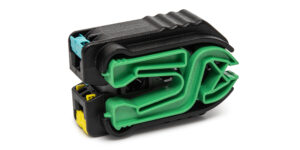

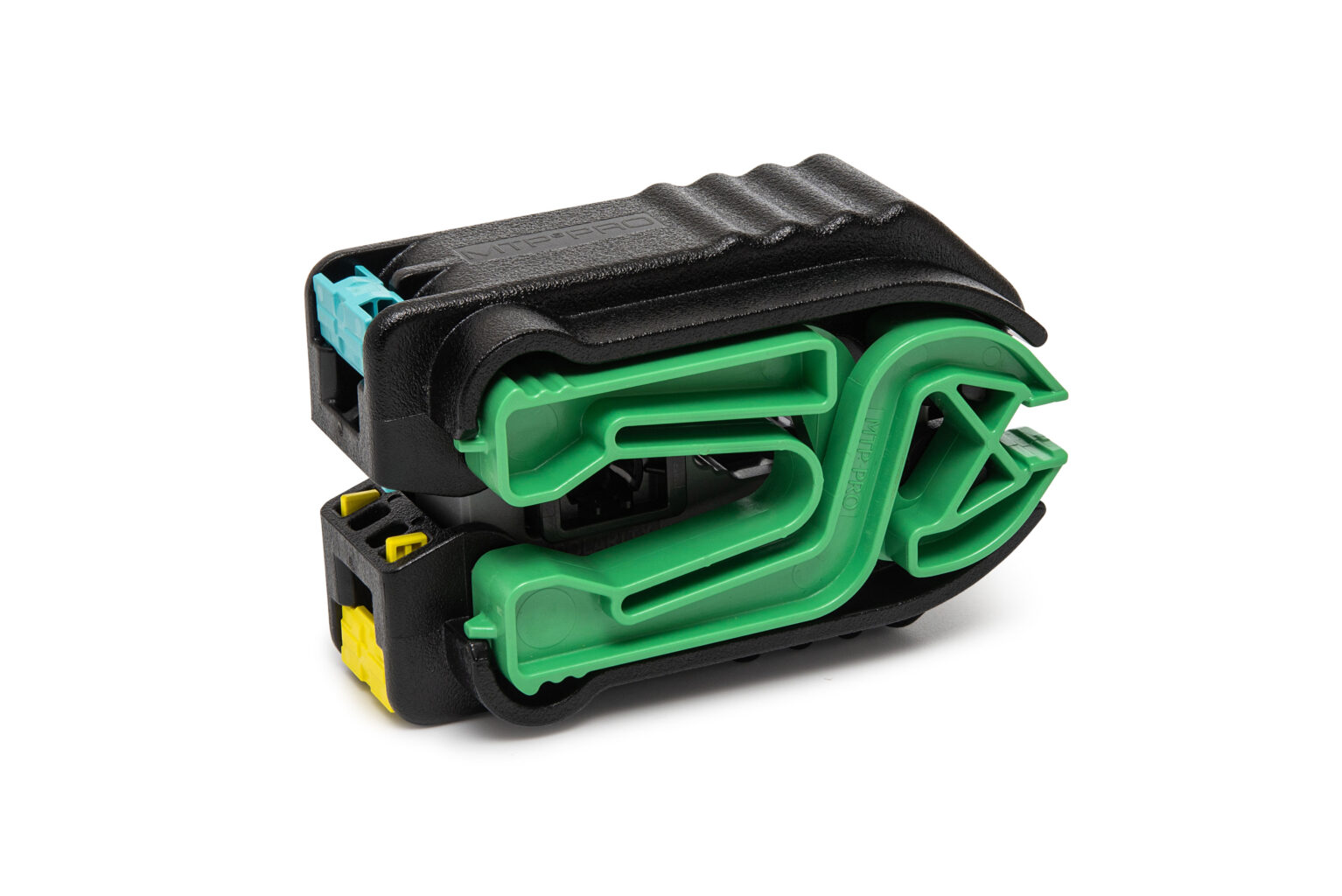

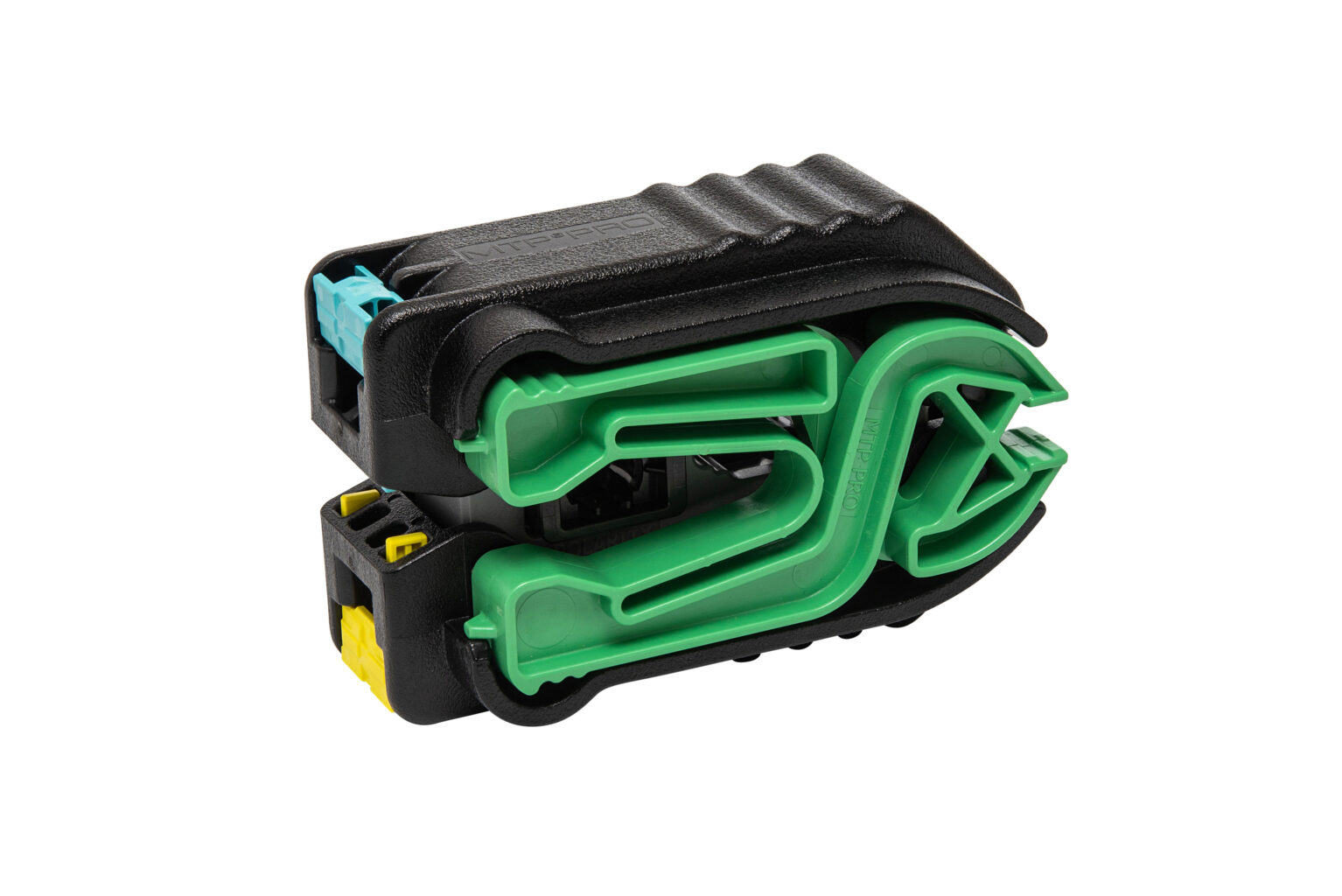

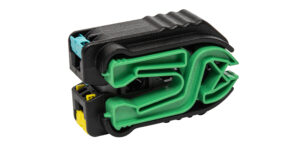

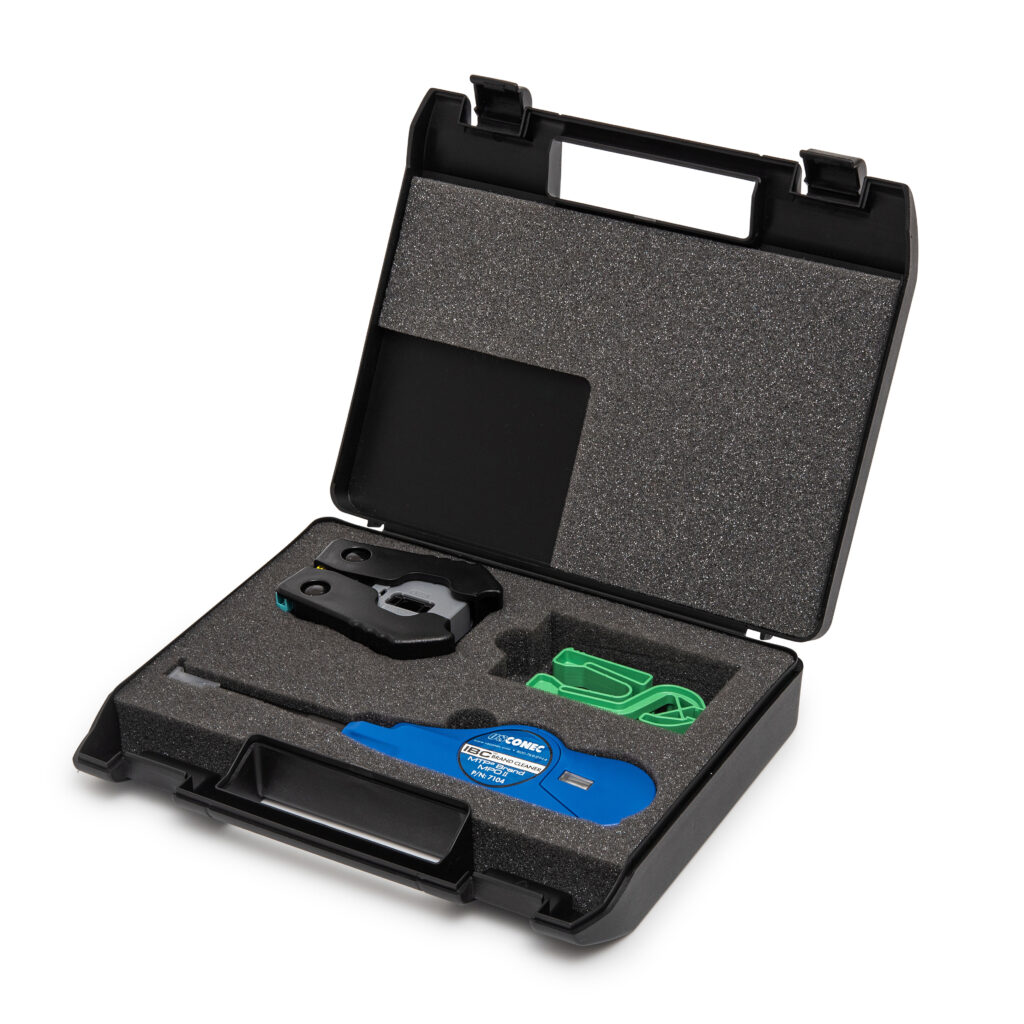

MTP PRO Tool Kit
A dedicated field-service toolkit for MTP® PRO connectors, enabling polarity changes and male/female pin reconfiguration without replacing the connector assembly.
Polarity and pinning requirements can change during installation, migration or troubleshooting. The MTP® PRO Tool Kit provides a service method for reconfiguring compatible MTP® PRO connectors in the field instead of replacing the complete cable assembly.
The supplied Fibernet documentation defines three core functions: field polarity change, male-to-female pin reconfiguration and female-to-male pin reconfiguration.
Choose Configuration

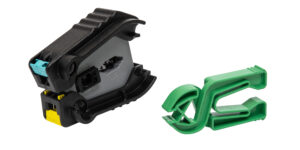

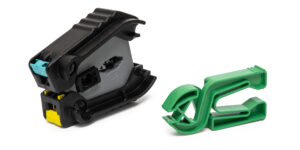

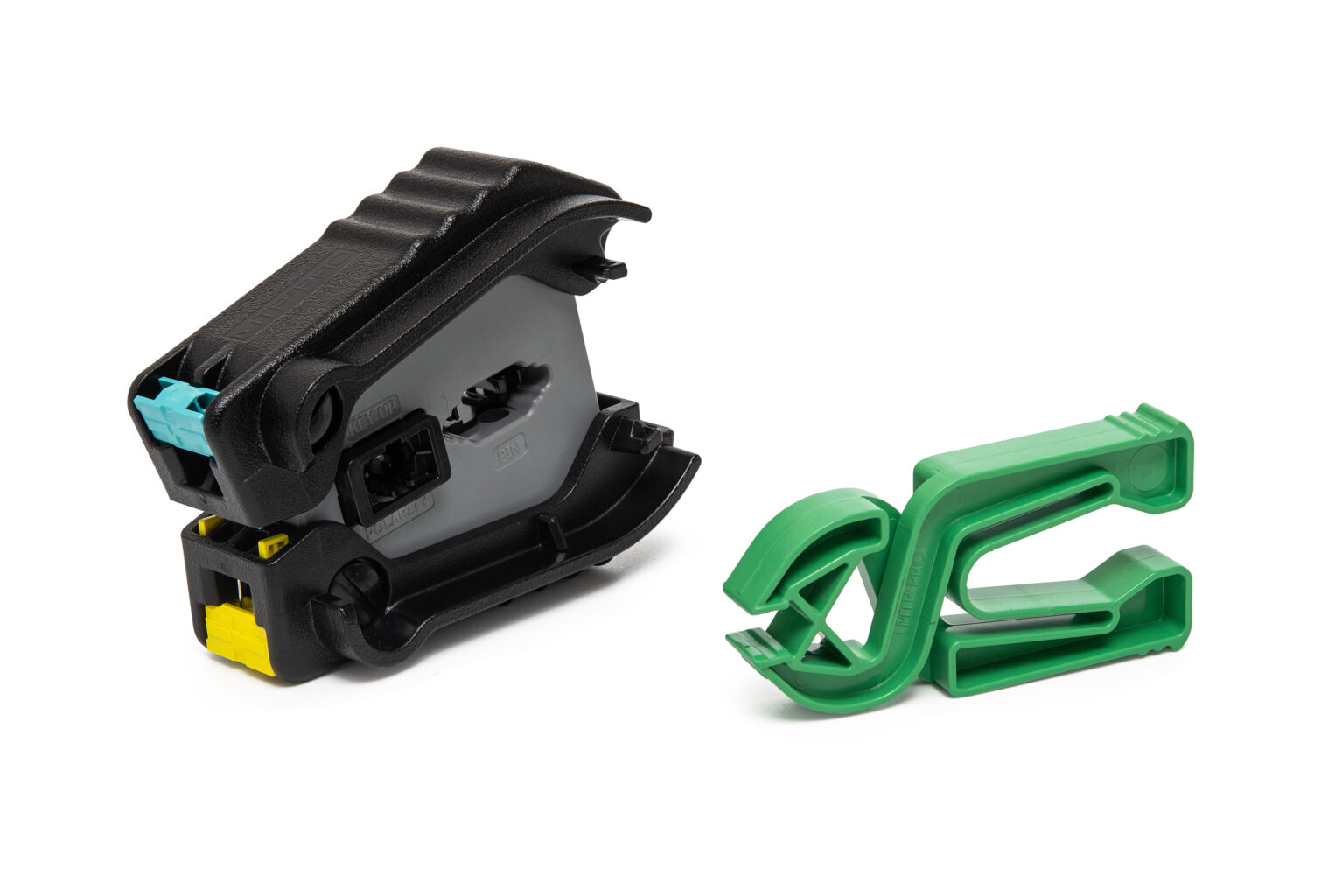

MTP PRO Polarity & Gender Change Tool
MPO Connector Polarity and Gender (Male/Female) Change Tool, supplied without male pins.
- Function
- Polarity and Gender Change
- Connector Family
- MPO / MTP® PRO
- Male Pins
- Not included
MTP PRO Tool Kit with Pins
MPO Connector Polarity and Gender (Male/Female) Change Tool Kit, including 10 Single-Mode (SM) male pins and 10 Multi-Mode (MM) female pins.
- Function
- Polarity and Gender Change
- Connector Family
- MPO / MTP® PRO
- SM Male Pins
- 10pcs
- MM Female Pins
- 10pcs
Male to Female
Support field pin removal and connector reconfiguration from male to female.
Female to Male
Support field pin reconfiguration from female to male.
Purpose-Built for MTP® PRO
The source specifies compatibility with MTP® PRO connectors only.
| Kit | Part Number | Included Items |
|---|---|---|
| MTP® PRO Tool Kit | PFL0920 | MTP® PRO Field Tool, Gripper, Pin Exchanger |

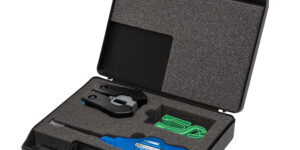

| MTP® PRO Extended Tool Kit | TLF1163 | MTP® PRO Field Tool, Gripper, Pin Exchanger, MTP PRO Jumper, Cleaner, MTP® PRO Female Pin Exchanger Aqua 10 Pack, MTP® PRO Female Pin Exchanger Yellow 10 Pack |

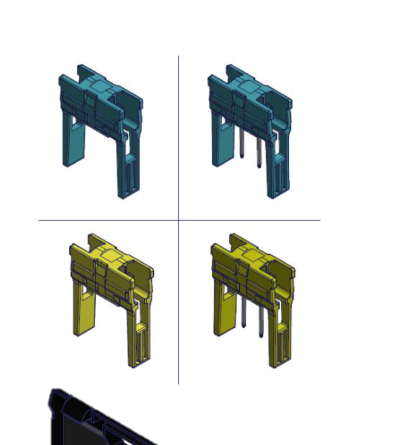

| P/N | Description |
|---|---|
| OPF2004 | Pin Exchanger MTP PRO Female Aqua |
| OPF2005 | Pin Exchanger MTP PRO Female Yellow |
| OPF2006 | Pin Exchanger MTP PRO Male Aqua |
| OPF2007 | Pin Exchanger MTP PRO Male Yellow |
Data Center Installation
Correct MTP® PRO polarity or pinning during installation and commissioning.
Moves, Adds & Changes
Adapt compatible MTP® PRO connections when the required field configuration changes.
Migration Projects
Support infrastructure changes where MTP® PRO keying or pinning must be reconfigured.
Field Service & Troubleshooting
Provide technicians with a dedicated reconfiguration tool for compatible MTP® PRO connectors.
