Change Polarity in the Field
The MTP® PRO tool provides a one-step, color-coded polarity change without opening the connector housing.

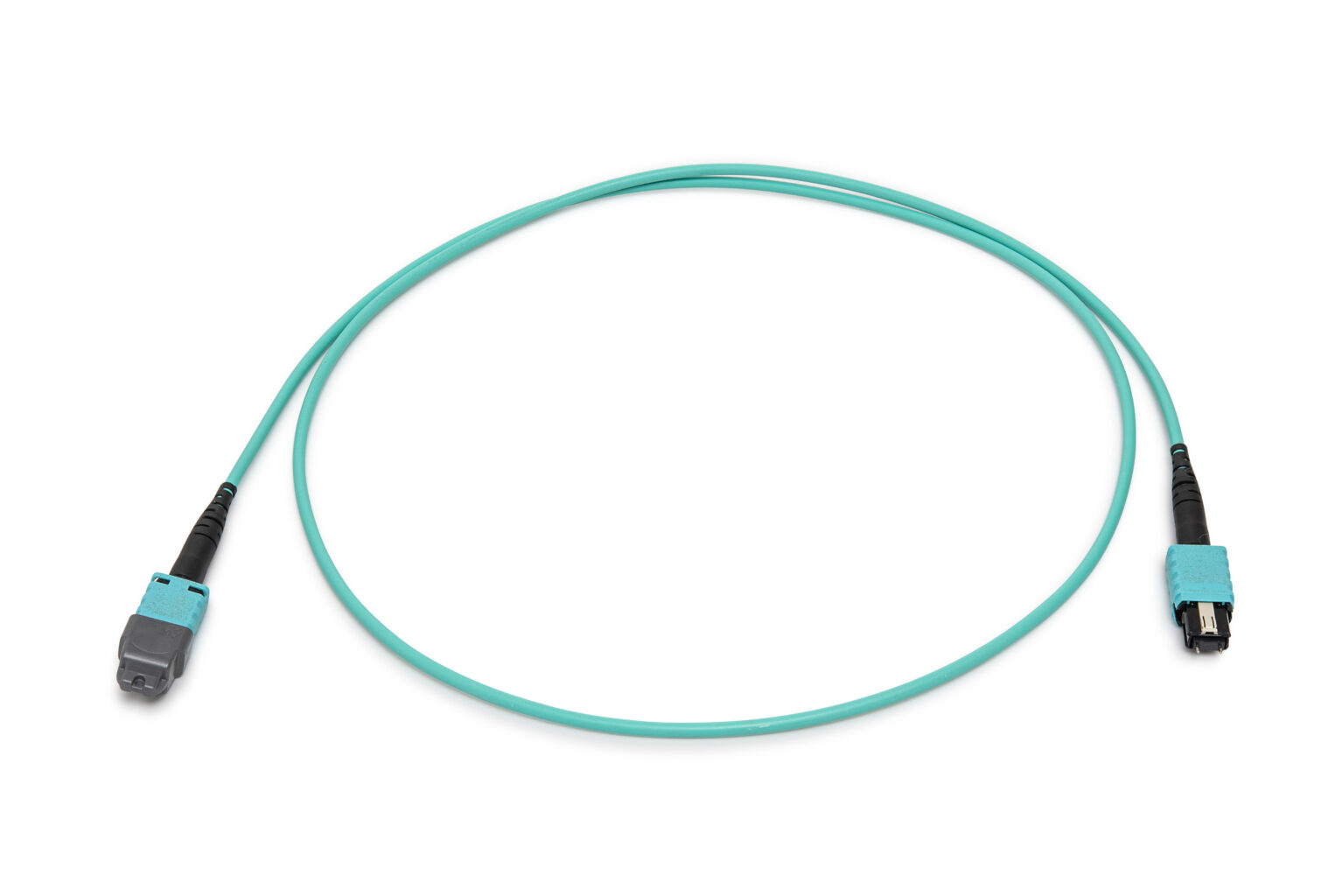

MTP PRO PATCH CORDS
Low-loss, bend-insensitive MTP® PRO patch cords designed for high-density data center connectivity with field polarity and pin reconfiguration—without removing the connector housing.
High-density MTP® links can require polarity or pinning changes during installation, migration or maintenance. With a conventional connector, these changes may require a different assembly or more invasive connector handling.
The MTP® PRO system is designed to simplify that field change. The dedicated tool reverses keying configuration and supports pin reconfiguration without removing the connector housing or handling loose pins, reducing rework during moves, adds and changes.
Choose Configuration
12F OM3 PRO Male / Female, 1 m
Part NumberFIBP12OMFUU0010L
12-Fiber multimode optical patch cord with twelve OM3 50µm fibers. Terminated with MTP® Elite Low Loss connectors with field-reversible polarity and gender-change capability. Configured one side Male (pinned) and one side Female (unpinned), factory UPC polished, 1 meter in length. Available in 12 identification colors according to project requirements.
- Fiber Count
- 12fibers
- Fiber Type
- OM3 50µm
- Side 1
- MTP® Male (pinned)
- Side 2
- MTP® Female (unpinned)
- Connector Grade
- Elite Low Loss
- Polish
- UPC
- Length
- 1m
- Polarity
- Field-reversible
- Gender
- Field-changeable Male / Female
- Identification Colors
- 12colors
- Standard
- TIA/EIA-604-10
12F OM3 PRO Male / Male, 1 m
Part NumberFIBP12OMMUU0010L
12-Fiber multimode optical patch cord with twelve OM3 50µm fibers. Terminated with MTP connectors featuring field-reversible polarity and gender-change capability. Configured with Male (pinned) connectors on both ends, factory UPC polished, 1 meter in length. Polarity can be changed on site by a technician.
- Fiber Count
- 12fibers
- Fiber Type
- OM3 50µm
- Side 1
- MTP® Male (pinned)
- Side 2
- MTP® Male (pinned)
- Polish
- UPC
- Length
- 1m
- Polarity
- Field-reversible
- Gender
- Field-changeable Male / Female
- Standard
- TIA/EIA-604-10
Reconfigure Male / Female Pinning
Field-changeable guide pins provide flexibility when connector pinning must change after deployment.
Protect Connector Integrity
The reconfiguration method is designed to avoid loose-pin handling while preserving the connector housing.
Control Optical Performance
MTP® PRO Elite connectors, IL/RL testing and interferometer ferrule-geometry verification support predictable link performance.

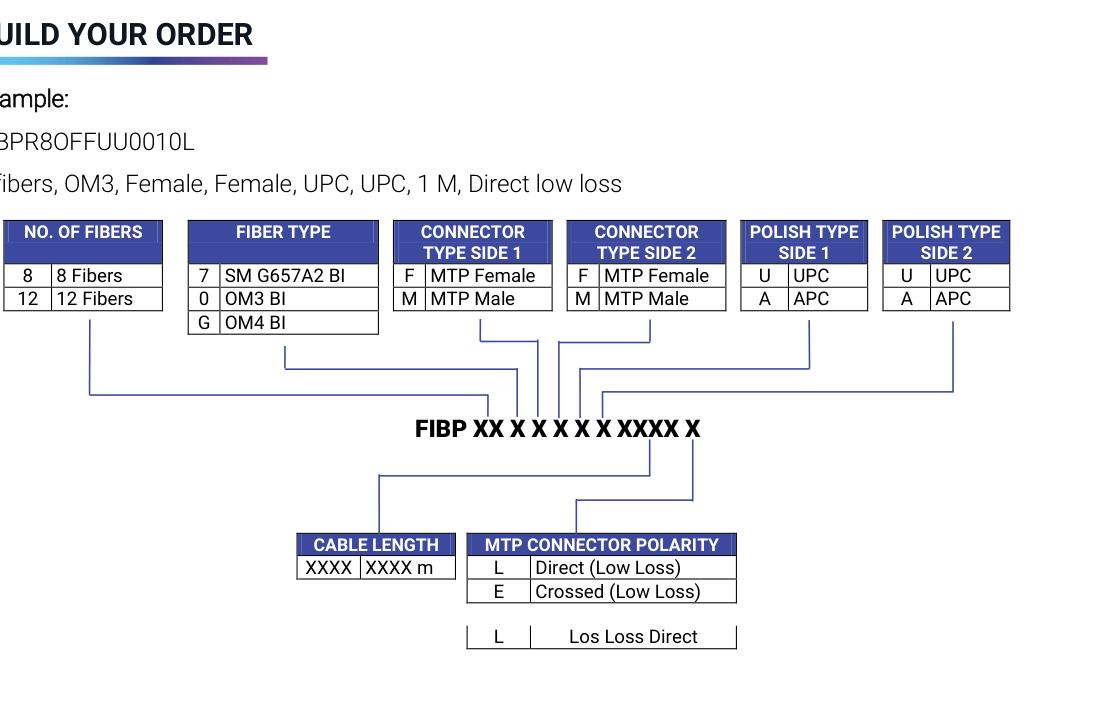

| Option | Published Choices |
|---|---|
| Fiber Count | 8 fibers / 12 fibers |
| Fiber Type | G.657.A2 bend-insensitive single-mode, OM3 B.I., OM4 B.I. |
| Connector Gender – Side 1 | MTP® Female / MTP® Male |
| Connector Gender – Side 2 | MTP® Female / MTP® Male |
| Polish | UPC / APC |
| Polarity | Direct (Low Loss) / Crossed (Low Loss) |
| Cable Length | Custom length via ordering code |
Ordering example: FIBPR8OFFUU0010L — 8 fibers, OM3, Female/Female, UPC/UPC, 1 m, Direct Low Loss.
| Parameter | Multimode Low Loss | Single-Mode Low Loss |
|---|---|---|
| Insertion Loss | 0.1 dB typical; 0.3 dB maximum | 0.1 dB typical; 0.3 dB maximum |
| Total End-to-End Loss | 0.6 dB, up to 5 meters | |
| Durability / Loss Variation | ≤0.2 dB after 500 cycles (per EIA-455-21A) | ≤0.3 dB after 500 cycles (per EIA-455-21A) |
| Fiber Attenuation | <3 dB/km @ 850 nm | <0.35 dB/km @ 1310/1550 nm |
| Cable Outer Diameter | 2 mm | |
| Bending Radius | 7.5 mm | |
| Operating Temperature | -20°C to +70°C | |
| Cable Retention | 100 N | |
| Connector Retention | 45 N | |
| Cable Crush Resistance | 45 N/cm | |
Construction & Quality
- Pre-terminated with MTP® PRO Elite connectors.
- High-precision guide pins.
- LSZH-FR / HFFR custom-labeled cable jacket.
- All-dielectric cable construction.
- IL/RL and interferometer ferrule-geometry testing for every fiber.
- Individually printed serial numbers for cable identification.
- Durable strain relief and pulling-eye grips.
- Reliable pin retention force exceeding 19.6 N.
- Compatible with all STAR ODF series.
Data Centers
Field-configurable multi-fiber patching where polarity and pinning may need to change during deployment or migration.
High-Density Environments
Compact MTP® patching in cabinets, panels and network zones with limited space.
Storage Area Networks (SAN)
Pre-terminated multi-fiber patching for high-capacity storage infrastructure.
Communications Rooms
Structured MTP® patching with field reconfiguration capability.
DRP / BCP Sites
The datasheet cites field-proven use in disaster recovery, business continuity and central data-center environments.
The supplied datasheet references the following standards and compliance families:
IEEE 802.3ba · 40/100 Gb/s
IEEE P802.3bs · 400 Gb/s
IEC 60793-2-10
ITU-T G.657.A2
GR-1435-CORE
TIA/EIA 604-5 · MPO FOCIS
IEC 61754-7
TIA-568-C.3
IEC 60793-1
IEC 11801
TIA-492.AAAC
TIA-492.AAAD
TIA-942-A
IEC 60794-1 / -2
IEC 60874
UL94-V-0
IEC 60332-3C
IEC 60754-1/2
IEC 61034
UL1581 VW-1
UL1666
EN 50575:2014 D
CSA C22.2 FT-1
RoHS
