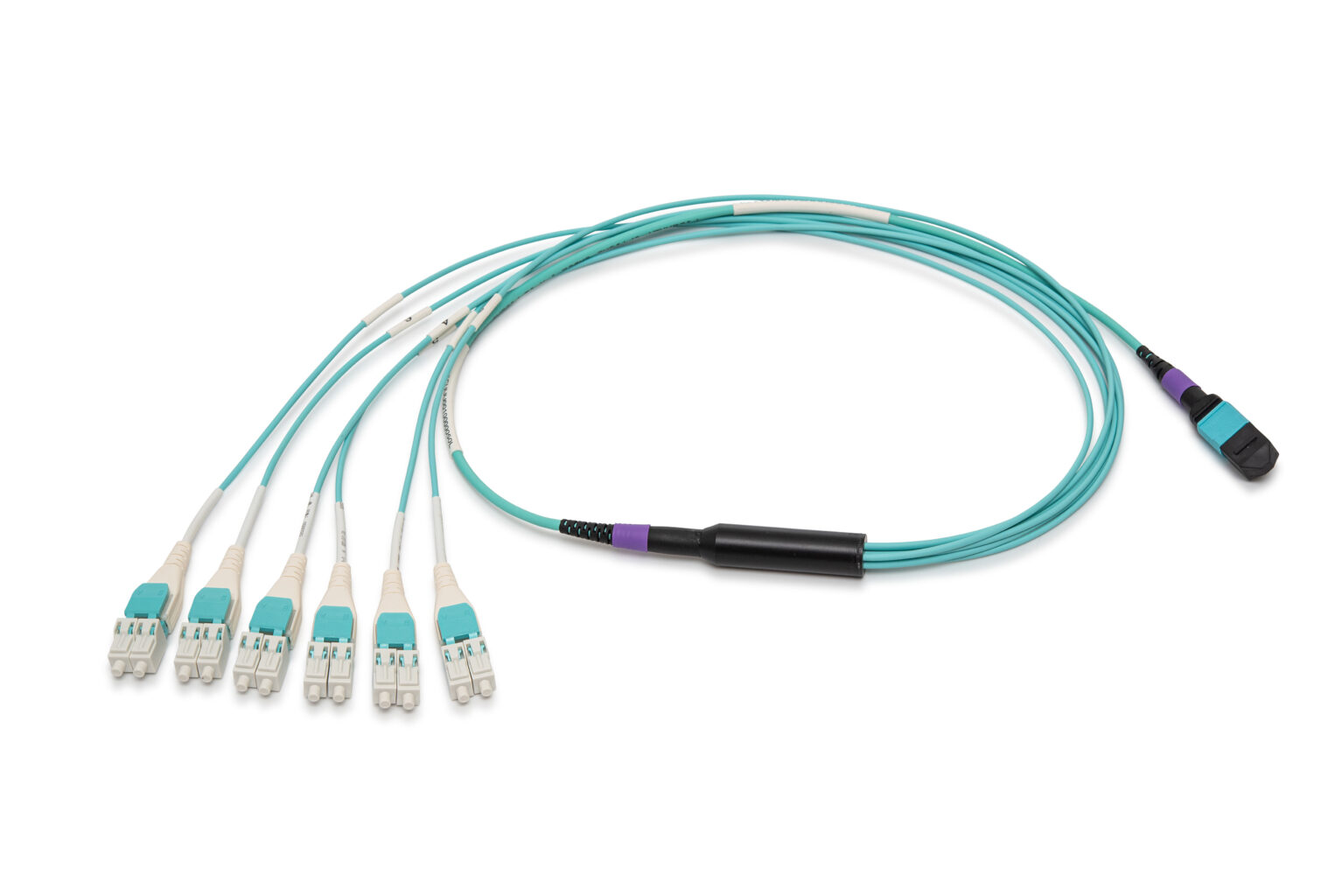

MTP Bundles & Fanouts

Pre-terminated single-mode and multimode MTP® assemblies designed to transition high-density multi-fiber connectivity into equipment-side and patching interfaces.

MTP® cabling is designed for dense, multi-fiber connectivity, but equipment-side interfaces may require LC, SC, ST, FC or other connector formats. Fibernet MTP® Bundle & Fanout assemblies provide a factory-terminated transition between the MTP® side and the required fanout connector architecture.

The datasheet states that MTP® connectivity provides more than 12 times the density of standard connectors. Combined with precision molded MT ferrules and metal guide pins, the assembly is designed for compact infrastructure with accurate fiber alignment during mating.

Reduce Space at High-Density Connection Points

Use compact MTP® connectivity at the trunk side while presenting the breakout interfaces required by active equipment or patching hardware.

Eliminate Field Termination

Factory-pre-terminated assemblies reduce on-site termination work and simplify deployment.

Configure the Fanout to the Application

Select connector formats, fiber counts, fanout lengths, polish types and polarity/loss options through the ordering structure.

Document Optical Quality

Insertion loss, return loss and ferrule geometry testing are documented for every fiber.

Fiber Count / Bundle Options

Code Configuration
8 8 fibers
12 12 fibers
16 16 fibers
24 24 fibers
48 48 fibers
2X 2 × 12 fibers
3X 3 × 12 fibers
4X 4 × 12 fibers

Fiber & Connector Options

  • 50/125
  • 62.5/125
  • G.657.A2 B.I.
  • Single-Mode
  • OM3 B.I.
  • OM4 B.I.
  • MTP® Female
  • MTP® Male
  • ST
  • FC
  • SC Simplex
  • SC Duplex
  • LC Simplex
  • LC Duplex
  • LC Uniboot
  • LX 0.5
  • UPC / APC

Polarity / Loss Options

  • Standard Loss, Cross
  • Low Loss, Cross
  • Low Loss, Cross + Pull Eye
  • Low Loss, Direct
  • Low Loss, Direct + Pull Eye
  • Standard Loss, Direct

Ordering example: FIB12X7MMAA0150030070E — 12×12 MTP® / Male-MTP® / Male, SM BI, 15 m, Low Loss Cross.

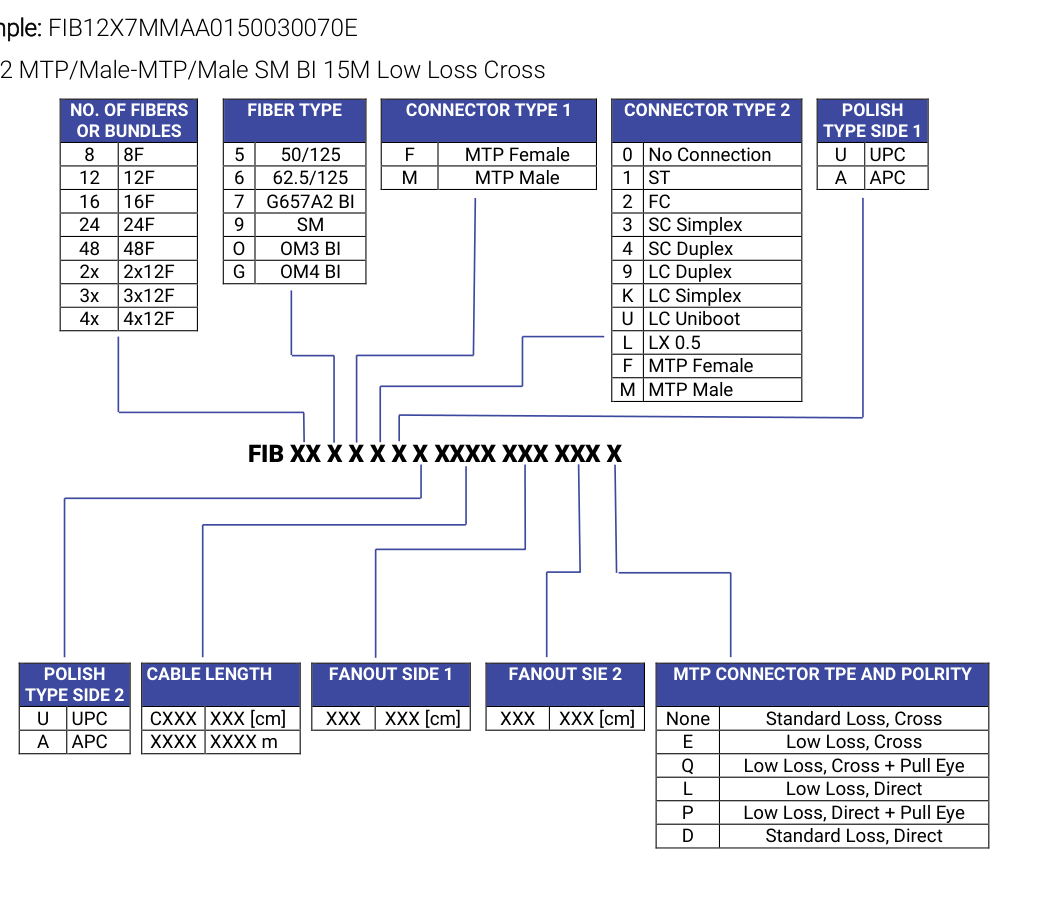

MTP bundle and fanout ordering matrix showing fiber count, fiber type, connector, polish, cable length and polarity options
Parameter MM MT Low Loss Multimode MT Ferrule SM MT Low Loss Single-Mode MT Ferrule
Insertion Loss 0.1 dB typical (all fibers); 0.35 dB maximum (single fiber) 0.1 dB typical (all fibers); 0.35 dB maximum (single fiber)
Durability ≤0.2 dB change, 500 matings ≤0.3 dB change, 500 matings
Operating Temperature -20°C to +70°C

The datasheet states that the maximum insertion-loss value above refers to 12-fiber MTP®. For 24- or 48-fiber MTP® configurations, contact Fibernet for the applicable performance specification. Return-loss values printed in the source datasheet require engineering validation before web publication and are therefore not reproduced here.

Construction & Quality

  • Compatible with all STAR ODF series.
  • Pre-terminated with MTP® Elite connectors.
  • Precision molded MT ferrules with metal guide pins.
  • LSZH-FR / HFFR custom-labeled cable jackets.
  • All-dielectric cable construction.
  • Durable strain-relief and pulling-eye grips.
  • 100% insertion-loss and return-loss testing for each fiber.
  • Documented IL/RL and ferrule-geometry testing for every fiber.

Data Centers

Equipment-side breakout and high-density structured fiber connectivity.

High-Density Environments

Where connector density and compact cable routing are key design requirements.

Storage Area Networks (SAN)

Multi-fiber breakout connectivity for storage and compute infrastructure.

Communications Rooms

Transition between dense MTP® infrastructure and patching or equipment interfaces.

Data Communication Networks

High-density optical connectivity across enterprise and telecommunications environments.

Backplane / PCB Applications

Multi-fiber interconnection in high-density data and telecommunications systems.

  • IEEE 802.3ba · 40/100 Gb/s
  • IEEE P802.3bs · 400 Gb/s
  • IEC 60793-2-10
  • ITU-T G.657.A2
  • GR-1435-CORE
  • IEC 61754-7
  • IEC 60793-1
  • IEC 61755-3
  • IEC 11801
  • IEC 60794-1 / -2
  • IEC 60874
  • TIA-604-10 · LC FOCIS 10
  • TIA-568-C.3
  • TIA/EIA 604-5 · MPO FOCIS
  • TIA-492.AAAC
  • TIA-492.AAAD
  • TIA-942-A
  • UL94-V-0
  • IEC 60332-3C
  • IEC 60754-1/2
  • IEC 61034
  • RoHS
