Iskratel Innbox G92

Combine Wired, Wireless, Voice and GPON Access at the Subscriber Premises

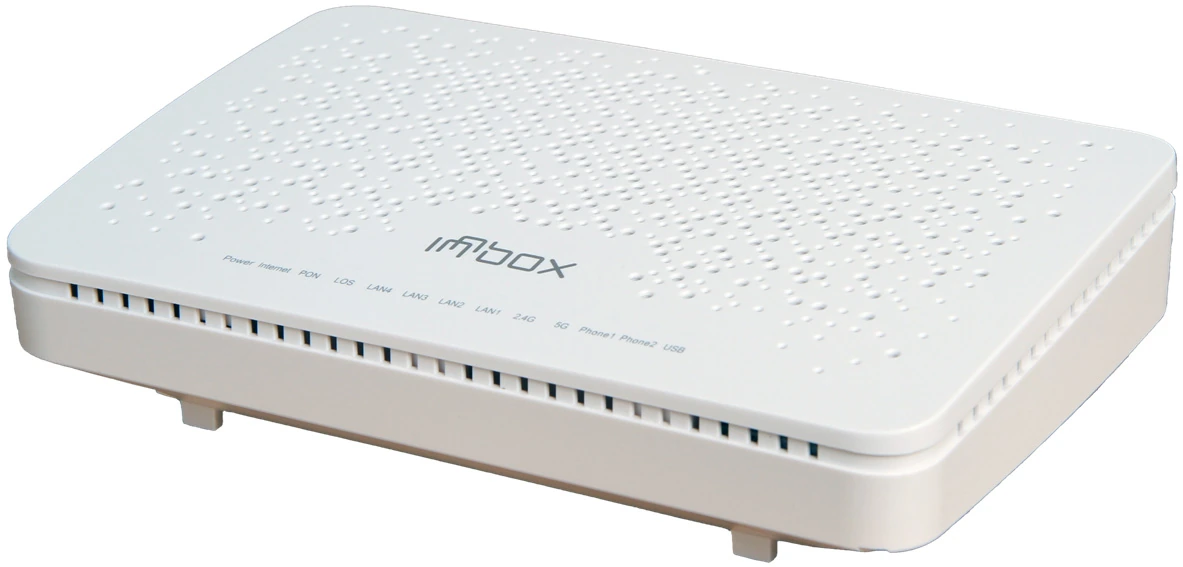

Iskratel Innbox G92 GPON FTTH home gateway with Wi-Fi 6, 4 Gigabit LAN ports, EasyMesh controller and VoIP capabilities.

The Challenge and the Product Solution

The Challenge

Combine Wired, Wireless, Voice and GPON Access at the Subscriber Premises

Residential broadband services require more than an optical termination. Multiple connected devices, IPTV and voice services place additional requirements on local Wi-Fi coverage, Gigabit Ethernet access and gateway functions.

The Product Solution

The Innbox G92 combines a GPON gateway, four Gigabit Ethernet LAN ports, dual-band Wi-Fi 6 and EasyMesh controller functionality, with SIP-compatible voice and home networking capabilities described in its datasheet.

Technical suitability depends on the access topology, endpoint requirements and the supplied manufacturer specification. Review the optical and service design before deployment.

Translate documented technical features into deployment decisions for the teams selecting, installing and operating the optical network.

For Broadband Operators

Combine GPON termination and the subscriber gateway function for wired, wireless and VoIP services.

For Residential Service Design

Four Gigabit Ethernet LAN ports and Wi-Fi 6 help support multiple local devices; actual performance depends on the deployment.

For Service Teams

EasyMesh controller functionality is available for compatible agent access points and managed wireless expansion.

Interface / Function Documented capability
WAN GPON, ITU-T G.984 / Class B+
LAN 4 × Gigabit Ethernet RJ45
Mesh EasyMesh controller; compatible agent support
Wireless Wi-Fi 6 (802.11ax), 2 × 2 MU-MIMO at 2.4 and 5 GHz
Wireless class AX1800, cumulative advertised 1,800 Mbps
Parameter Specification
WAN GPON, ITU-T G.984 / Class B+
LAN 4 × Gigabit Ethernet RJ45
Wireless Wi-Fi 6 (802.11ax), 2 × 2 MU-MIMO at 2.4 and 5 GHz
Wireless class AX1800, cumulative advertised 1,800 Mbps
Mesh EasyMesh controller; compatible agent support
Voice 2 × FXS RJ11 ports; SIP VoIP functions
USB 1 × USB 2.0 host
Service control NAT, firewall, VLAN, QoS, IGMP
Management OMCI, Web interface, TR-069 family
Operating temperature 0°C to +40°C

These pages reproduce capabilities from the supplied datasheets. Check product availability, revision, optical budget, OLT/ONT interoperability and software/feature licensing for each project.

Typical considerations and use cases described in the source. Final selection remains subject to project requirements.

  • FTTH residential broadband services
  • Broadband gateways for UHD IPTV applications
  • Multiroom Wi-Fi using compatible EasyMesh agents
  • Integrated Ethernet and VoIP subscriber services

This device sits on the subscriber side of a GPON access network. The equipment model, host interfaces where applicable, service profile and OLT interoperability must match the service provider deployment.

Illustrative PON network only. This diagram does not establish compatibility of specific OLT and ONT models, optical budget or performance.

One gateway for wired and wireless access

Serve Ethernet endpoints and Wi-Fi clients from a GPON connection.

Designed for broadband video and voice

The source describes multiple UHD IP video streams and SIP-compatible VoIP support.

Extend Wi-Fi with compatible agents

EasyMesh controller support enables a mesh network with agent access points.

Operator-oriented management

OMCI and TR-069-family management features are listed.

Wi-Fi 6 AX1800

4 × Gigabit LAN

EasyMesh Controller

VoIP Support
