EMULATOR RS232 to USB (KM HOT KEYS)
KVM control: SEM-1 can control Fibernet secured KVM devices using Fibernet custom protocols
SEM-1 enables a Fibernet secure KVM to become part of a larger control-room or AV/control-system architecture. The operator keyboard and mouse connect through SEM-1, while a third-party control system connects over RS-232.
The control device communicates using Fibernet custom protocols, allowing external commands to be delivered to the supported secure KVM without adding a separate software layer to the operator workstation.
A 3-pin terminal block provides the RS-232 control connection for an external controller.
SEM-1 controls Fibernet secured KVM devices using Fibernet’s custom protocol.

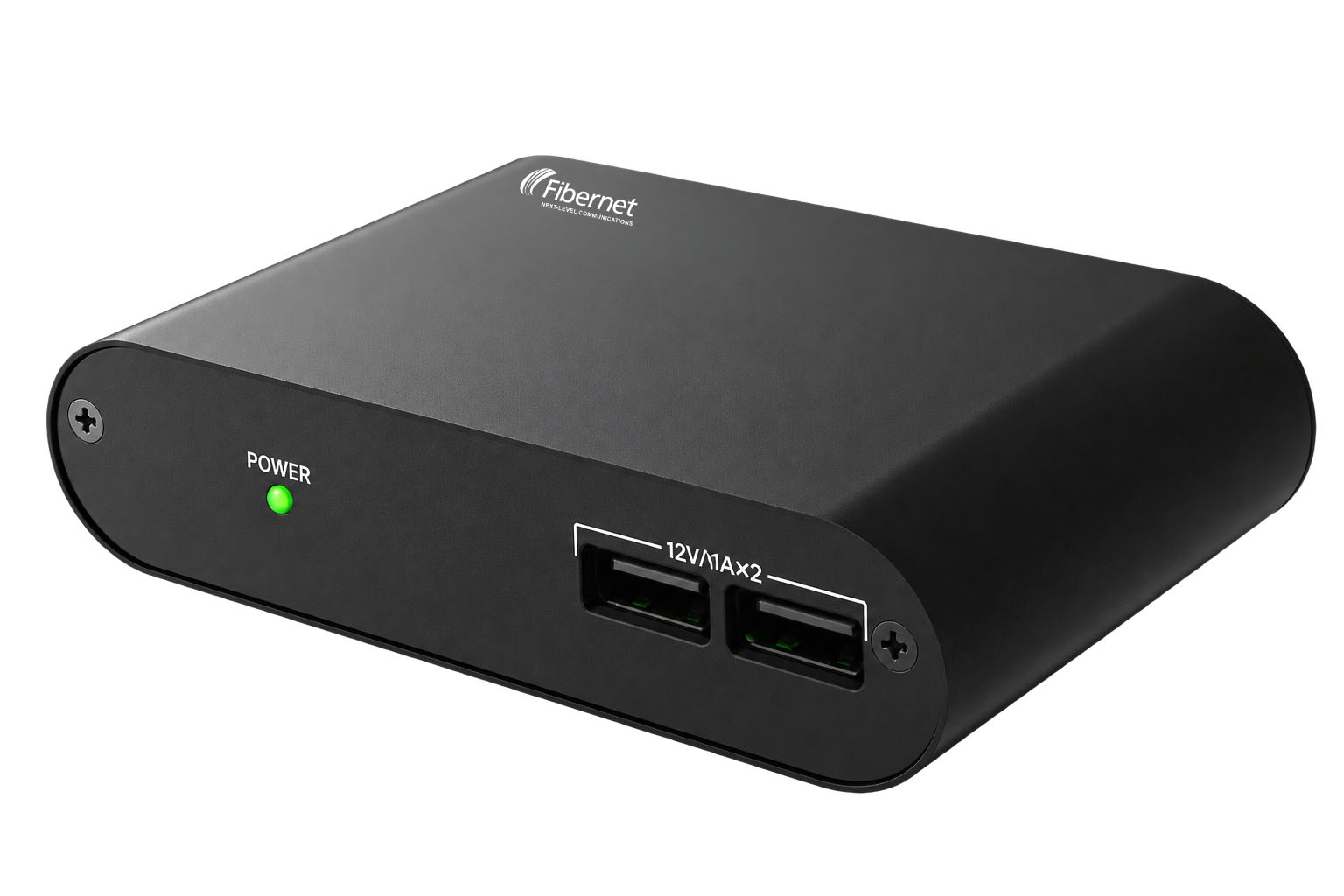

Two USB-A ports provide direct keyboard and mouse connectivity at the SEM-1.
USB-B connects SEM-1 to the supported Fibernet secure KVM and also supplies power.
Add Fibernet secure KVM switching to a wider room-control or command-and-control environment through RS-232.
The datasheet positions SEM-1 as plug-and-play, with no additional software required.
The small enclosure is designed to fit into space-constrained operator desks and equipment installations.
SEM-1 receives power exclusively from the secured KVM over the USB-B connection.
| Connection | SEM-1 |
|---|---|
| Keyboard / Mouse | 2 × USB-A |
| Device Control | 3-pin terminal block RS-232 |
| Secure KVM Connection | USB-B (to KVM) |
| Power | 5 V over USB-B from the secured KVM |
| Indicators | Power indicator + data/link indicator |
The supplied datasheet does not state baud rate, RS-232 pinout assignments, command strings or framing parameters. Those should be provided from an approved SEM-1 protocol document before publishing a programming section.
| Parameter | SEM-1 |
|---|---|
| USB-Powered | Yes |
| KVM Control | Yes |
| RS-232 Control | Yes |
| Input Power | 5 V over USB-B |
| Unit Dimensions (H × W × D) | 26.6 × 108.2 × 62.1 mm |
| Package Dimensions (H × W × D) | 80.4 × 160.5 × 143.8 mm |
| Unit Weight | 116 g |
| Weight Including Package | 283 g |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -40°C to +90°C |
| Operating Humidity | 90% max, non-condensing |
| Color | Black |
The source diagram shows the external controller connected to SEM-1 through RS-232. Keyboard and mouse connect to SEM-1 via USB, and SEM-1 connects onward to the Fibernet Secure KVM. The KVM remains connected to the source computer and display path.
| Part Number | Description |
|---|---|
| SEM-1 | External secure emulator via RS-232 for Fibernet secured KVM |
| Part Number | Description |
|---|---|
| FIM-CBL-USBA-USBB-1.8M | USB-A to USB-B cable, 1.8 m |
Send Fibernet the Secure KVM model, third-party controller, switching workflow and integration requirements. We can help validate the SEM-1 architecture and provide the appropriate control documentation.
