Reduce Test Setup Errors
Wave ID automatically identifies encoded wavelengths and can support testing of up to three wavelengths simultaneously.
AFL Loss Test
Smart optical loss test kits combining the OPM8 optical power meter and OLS8 optical light source for rapid power and loss testing across data center, enterprise LAN, PON, broadband, multimode and single-mode fiber networks.

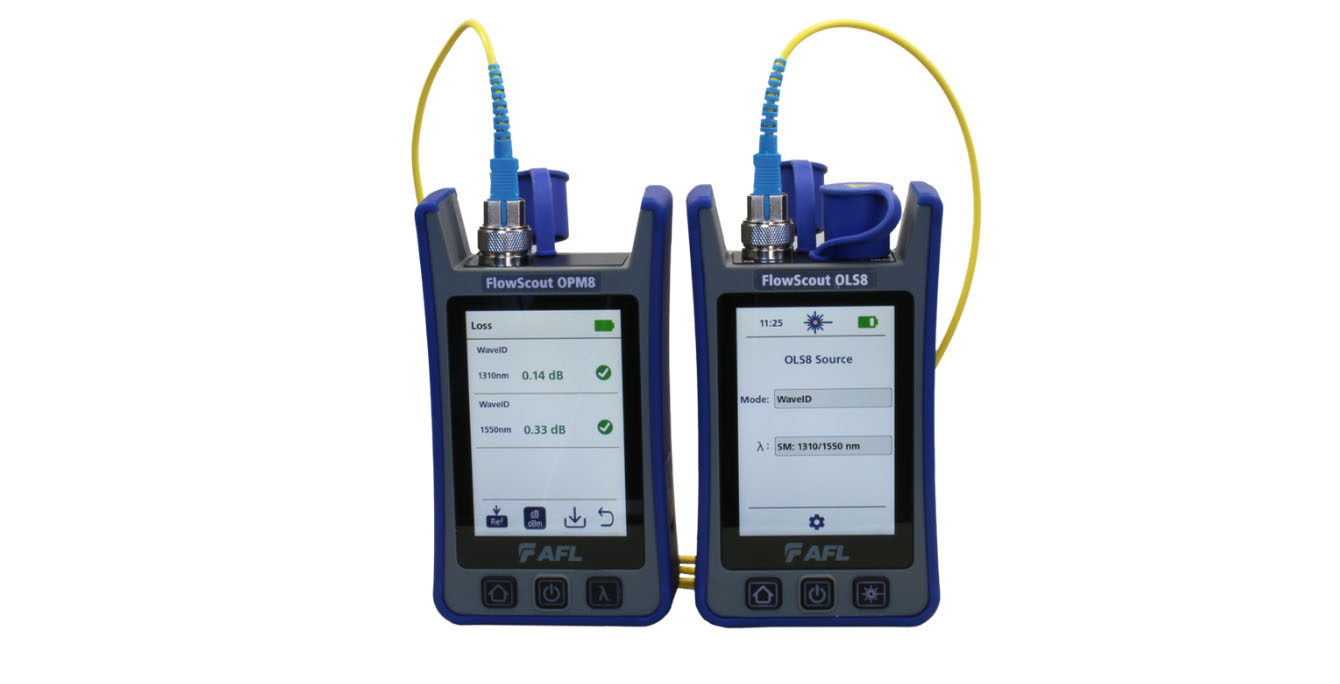

Fiber acceptance testing often requires technicians to set wavelengths, establish references, measure loss, compare results with project limits and document the outcome. FlowScout® combines these steps in a touchscreen workflow built around the OPM8 power meter and OLS8 light source.
The OPM8 can automatically evaluate measured levels against user-set limits, while Wave ID allows compatible OLS8 sources to identify wavelengths automatically. Results can be stored internally and transferred to AFL FlexReports for analysis and reporting.
Choose Configuration
SLP8-02
Part NumberSLP8-02-[KIT]
Single-mode FlowScout optical loss test kit.
- Power Meter
- OPM8-L
- Light Source
- OLS8-SM Dual
- Fiber Type
- SM
- Loss Wavelengths
- 1310 / 1550nm
- Dynamic Range
- 69dB
SLP8-07
Part NumberSLP8-07-[KIT]
Single-mode XGS/PON-oriented FlowScout optical loss test kit.
- Power Meter
- OPM8-H
- Light Source
- OLS8-SM XGS
- Fiber Type
- SM
- Loss Wavelengths
- 1310 / 1490 / 1550nm
- Dynamic Range
- 49dB
SMLP8-04
Part NumberSMLP8-04-[KIT]
Multimode + single-mode FlowScout optical loss test kit.
- Power Meter
- OPM8-L
- Light Source
- OLS8-QUAD
- Fiber Type
- MM + SM
- Loss Wavelengths
- 850 / 1300 / 1310 / 1550nm
- Dynamic Range
- 38 dB MM; 69 dB SM
Get Immediate Pass/Fail Results
Measured power and loss are evaluated against user-defined min/max limits and displayed with color-coded status.
Document Installed Fiber
Store more than 1,000 results in the OPM8 and transfer test data for analysis, editing and professional report generation.
Use One Platform Across Multiple Networks
Configurations support enterprise LAN, data center, FTTH/PON, broadband, multimode and single-mode testing.

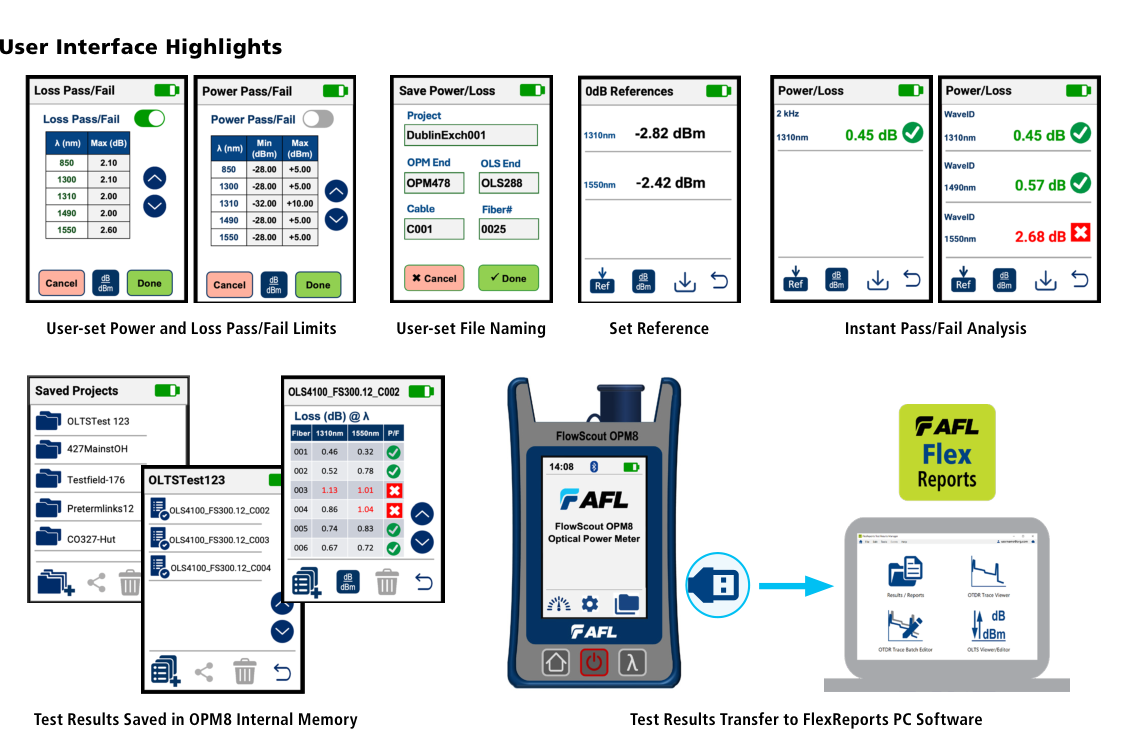

FlowScout® supports user-set power/loss limits, project naming, reference setting, instant pass/fail analysis, saved projects and result transfer to FlexReports PC software.
| Parameter | OPM8-H | OPM8-L |
|---|---|---|
| Calibrated Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1610, 1625, 1650 nm | |
| Detector Type | Filtered InGaAs | InGaAs |
| Measurement Range | +26 to -50 dBm | +10 to -70 dBm |
| Measurement Accuracy | ±0.25 dB | |
| Display Resolution | 0.01 dB/dBm | |
| Measurement Units | dB, dBm | |
| Tone Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz | |
| Wave ID | Automatic power/loss measurement at one or more wavelengths using AFL Wave ID sources | |
| Results Storage | >1,000 results in AFL .ATD (XML) format | |
| Connector Adapters | SC, FC, ST, LC, 2.5 mm Universal, 1.25 mm Universal | |
| Typical Battery Operating Time | 16 hours continuous use | |
| Recharge Time | 3 hours | |
| Operating Temperature | -10°C to +50°C, 95% RH non-condensing | |
| IP Rating | IP54 | |
| Shock / Vibration | Withstands 1 m drop test on all 6 sides | |
| Data Interfaces | USB-C and Bluetooth 5.1 | |
| Display | 3.5 in. color backlit capacitive touchscreen, 320 × 480 px | |
| Weight | ≤300 g | |
| Calibration | N.I.S.T. traceable; ≥3 years between required recalibration | |
| Warranty | 5 years | |
| Model / Port | Wavelengths | Emitter | Output / Key Notes |
|---|---|---|---|
| OLS8-QUAD – MM Port | 850 ±30 nm; 1300 ±20 nm | LED | ≥-22 dBm on 50 μm multimode |
| OLS8-QUAD – SM Port | 1310 ±20 nm; 1550 ±20 nm | Laser | -1 dBm on 9 μm single-mode |
| OLS8-SM | 1310 ±20 nm; 1550 ±20 nm | Laser | Single-port SM source |
| OLS8-XGS | 1310 ±20 nm; 1550 ±20 nm; 1490 ±20 nm | Laser | Single-port XGS/PON-oriented wavelength set |
| Output Stability | Up to ±0.05 dB over 1 hour and ±0.1 dB over 8 hours, depending on model/conditions | ||
| Tone Output | 270 Hz, 330 Hz, 1 kHz, 2 kHz | ||
| Wave ID | Supports AFL Wave ID | ||
| Available Adapters | SC, FC, ST, LC | ||
| Typical Operating Time | 10 hours continuous use | ||
| Recharge Time | ≤3 hours | ||
| Operating Temperature | -10°C to +50°C, 95% RH non-condensing | ||
| IP Rating | IP54 | ||
| Shock / Vibration | Withstands 1 m drop test on all 6 sides | ||
| Display | 3.5 in. color backlit capacitive touchscreen, 320 × 480 px | ||
| Weight | ≤300 g | ||
| Calibration / Warranty | N.I.S.T. traceable; ≥3 years recalibration interval; 5-year warranty | ||

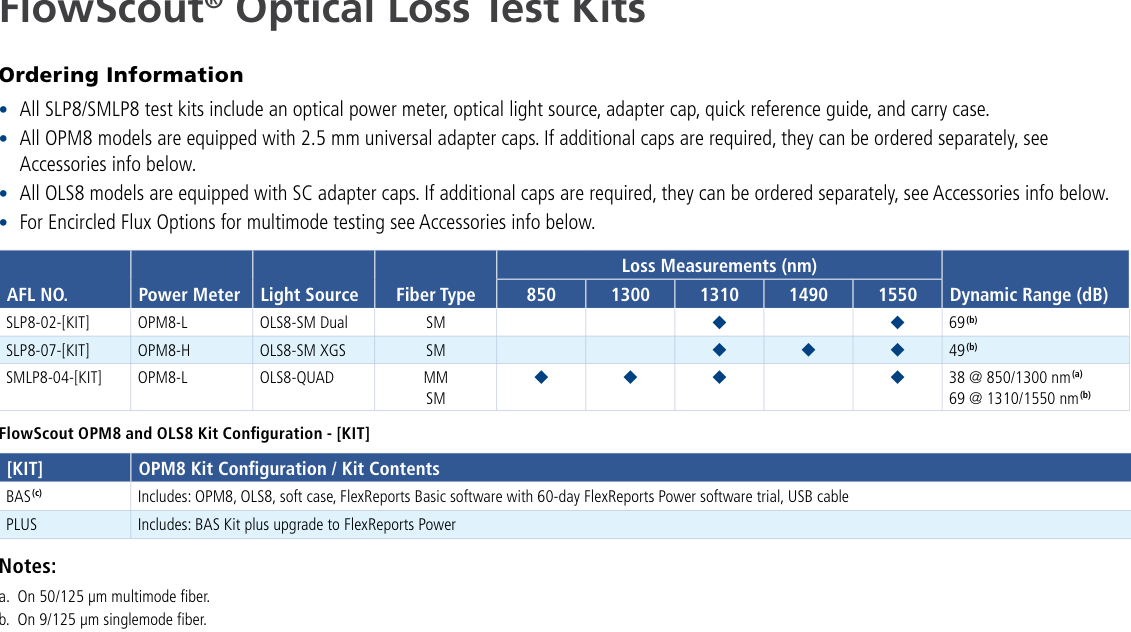

| AFL No. | Power Meter | Light Source | Fiber Type | Loss Wavelengths | Dynamic Range |
|---|---|---|---|---|---|
| SLP8-02-[KIT] | OPM8-L | OLS8-SM Dual | SM | 1310 / 1550 nm | 69 dB |
| SLP8-07-[KIT] | OPM8-H | OLS8-SM XGS | SM | 1310 / 1490 / 1550 nm | 49 dB |
| SMLP8-04-[KIT] | OPM8-L | OLS8-QUAD | MM + SM | 850 / 1300 / 1310 / 1550 nm | 38 dB MM; 69 dB SM |
[KIT] Software / Package Options
| Kit Code | Contents |
|---|---|
| BAS | OPM8, OLS8, soft case, FlexReports Basic with 60-day FlexReports Power trial, USB cable |
| PLUS | BAS kit plus upgrade to FlexReports Power |
All SLP8/SMLP8 kits include an optical power meter, optical light source, adapter cap, quick reference guide and carry case.
Data Center Fiber Networks
Power and insertion-loss testing for installed multimode and single-mode fiber links.
Enterprise LAN
Acceptance testing, validation and documentation of installed premises fiber cabling.
FTTH / PON
Single-mode loss testing with configurations covering common PON wavelengths.
Broadband Networks
High-power optical measurement using the OPM8-H configuration.
- CE
- UKCA
- IEC 61010-1
- IEC 61326-1
- EN 55011
- FCC 47 CFR 15
- FDA 21 CFR 1040.10 / 1040.11
- IEC 60825-1
- RoHS 2 / RoHS 3
- TIA-568.3-E
- TIA-526-7
- TIA-526-14
- IEC 11801
- EN 50173
- IEC 14763-3
- IEC 61280-4-1
- IEC 61280-4-2
- IEC 61315
AFL notes that an appropriate encircled-flux mode conditioner may be required to meet encircled-flux launch conditions for certain multimode standards-compliant tests.
